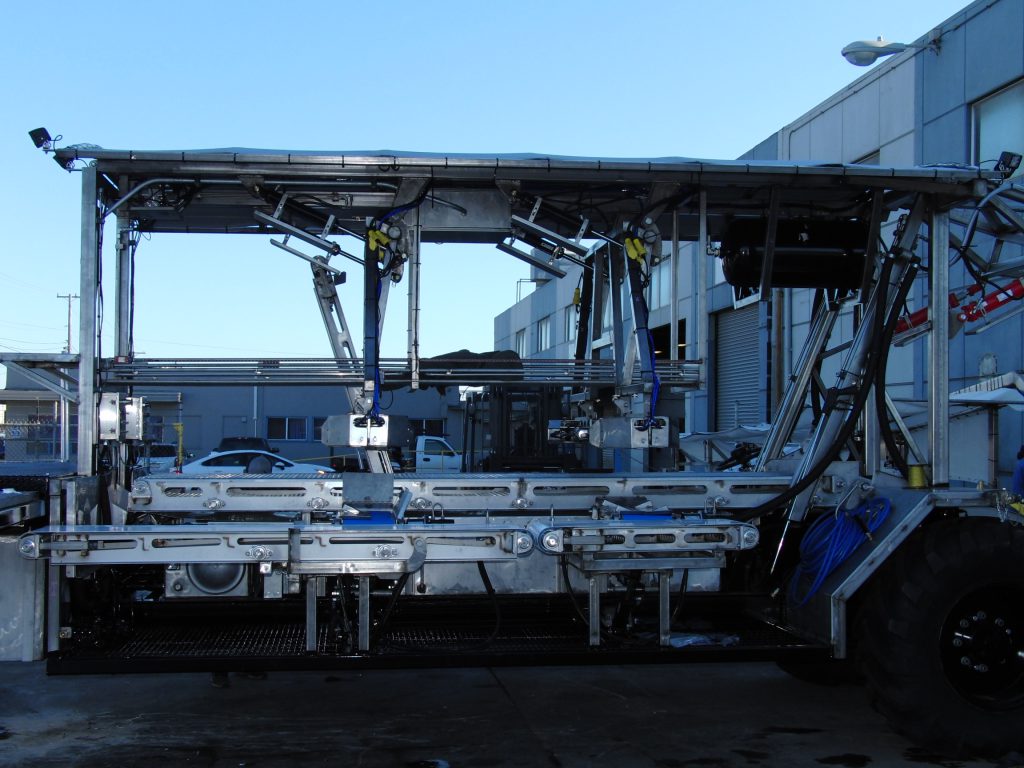

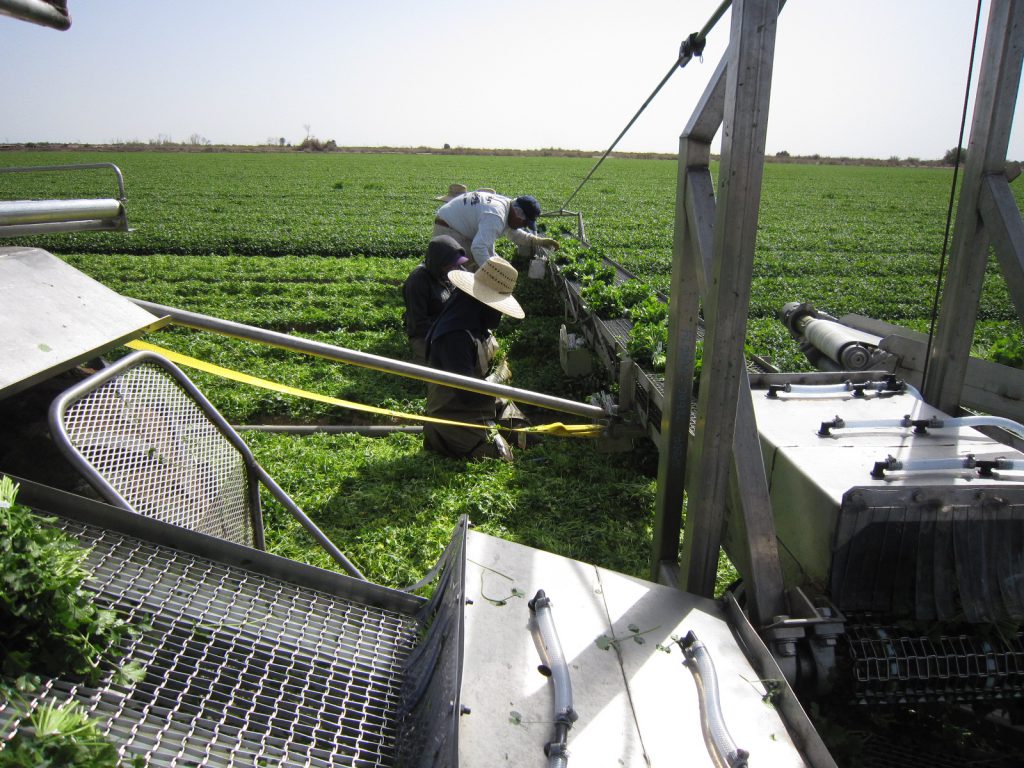

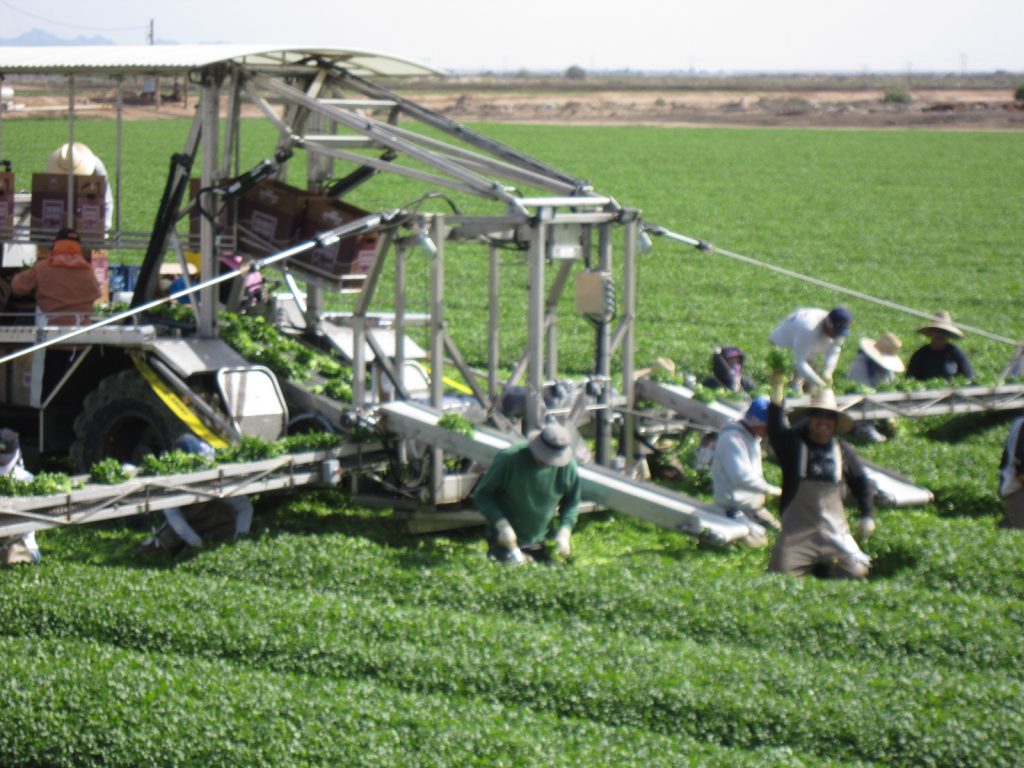

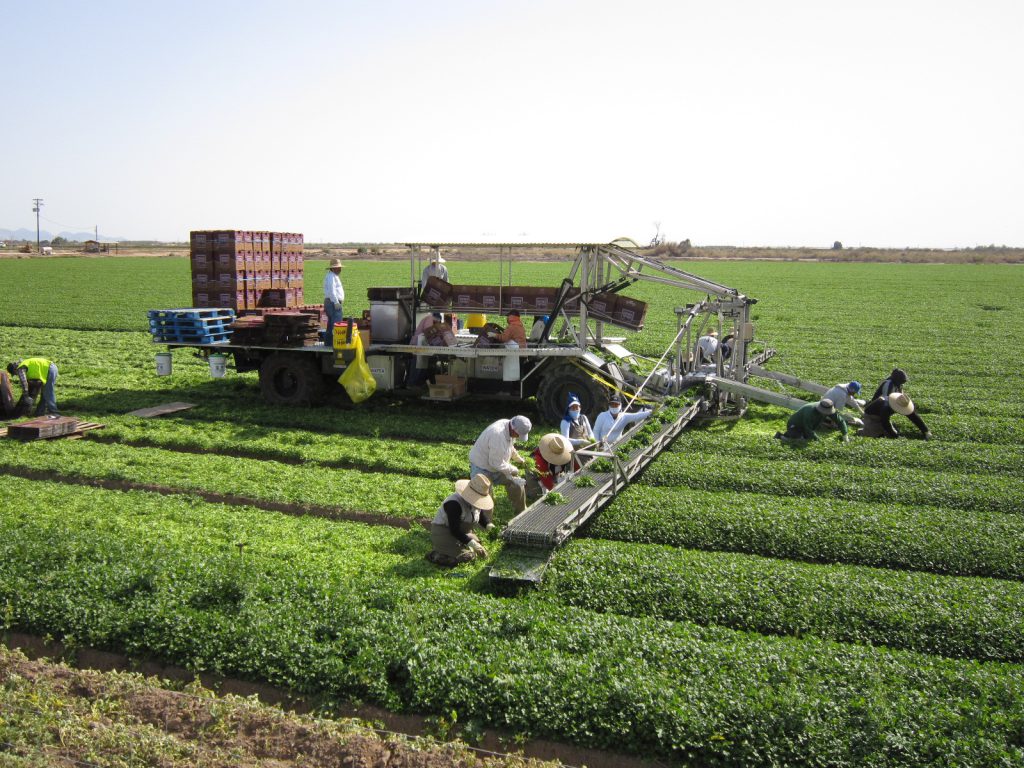

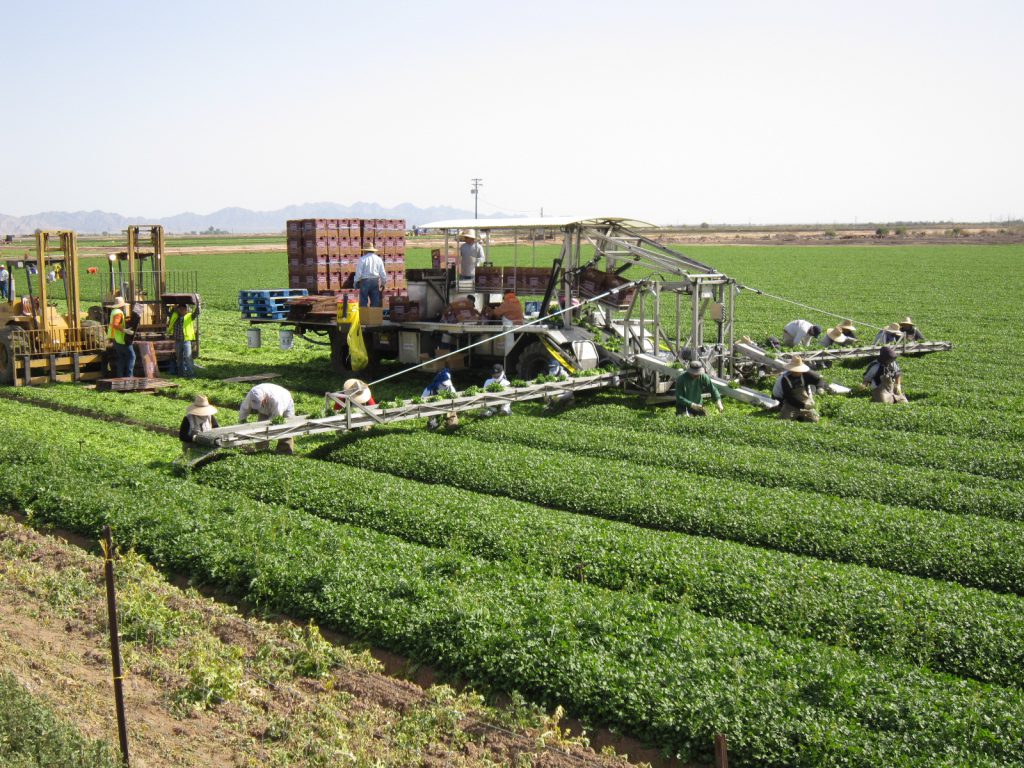

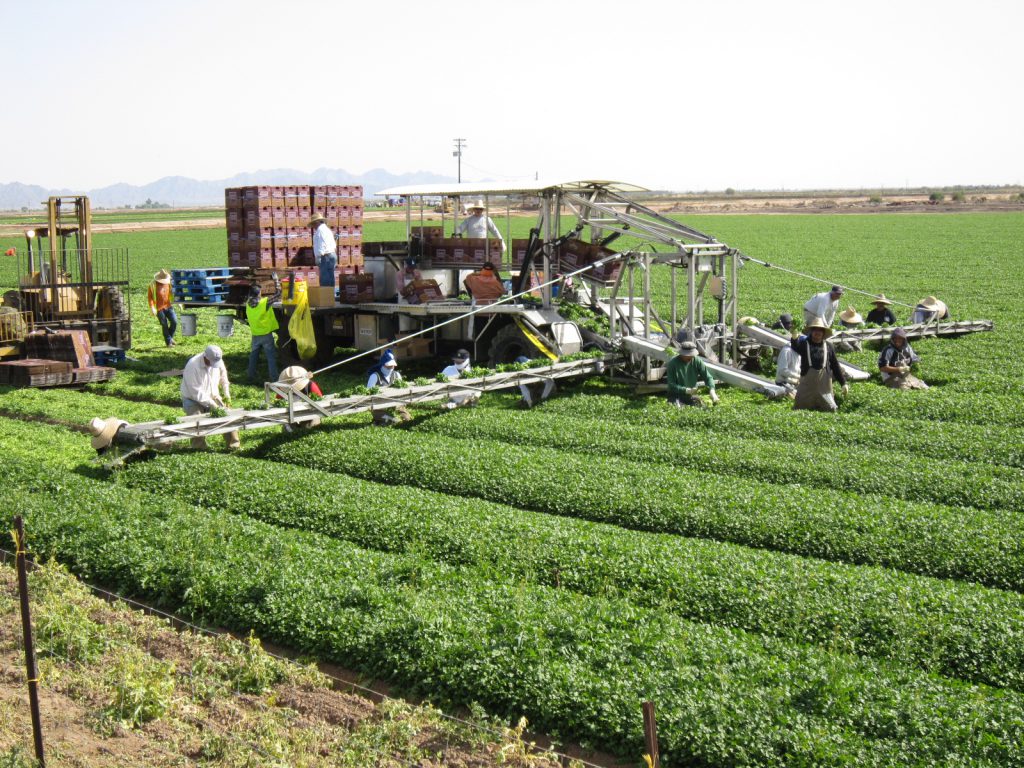

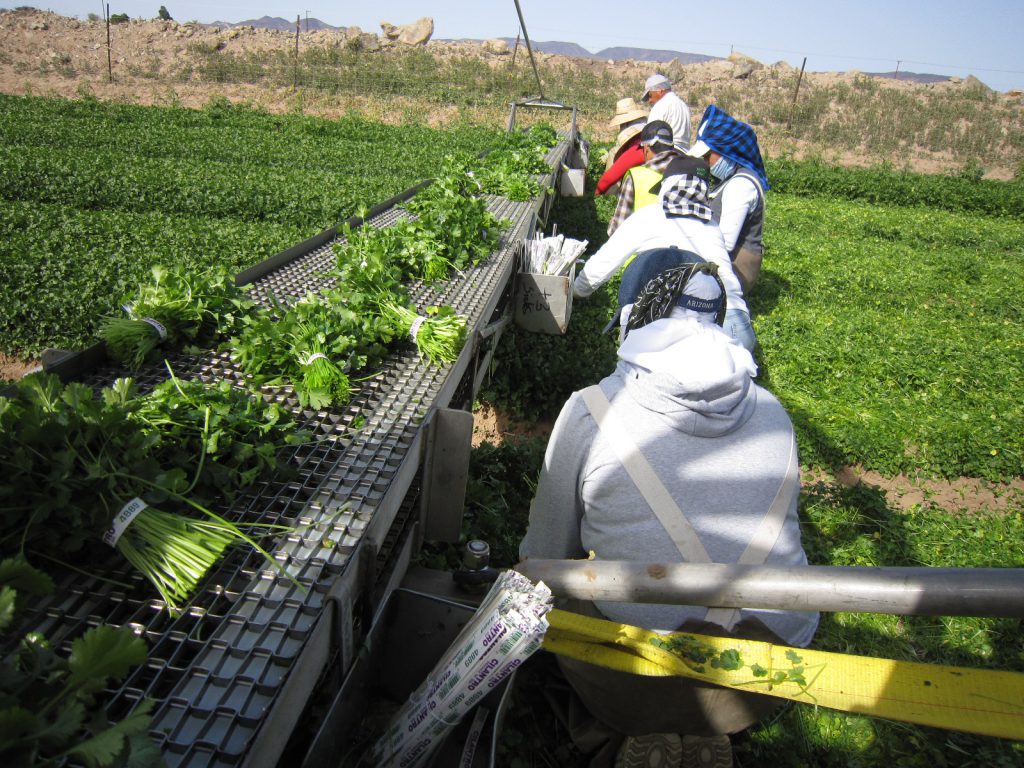

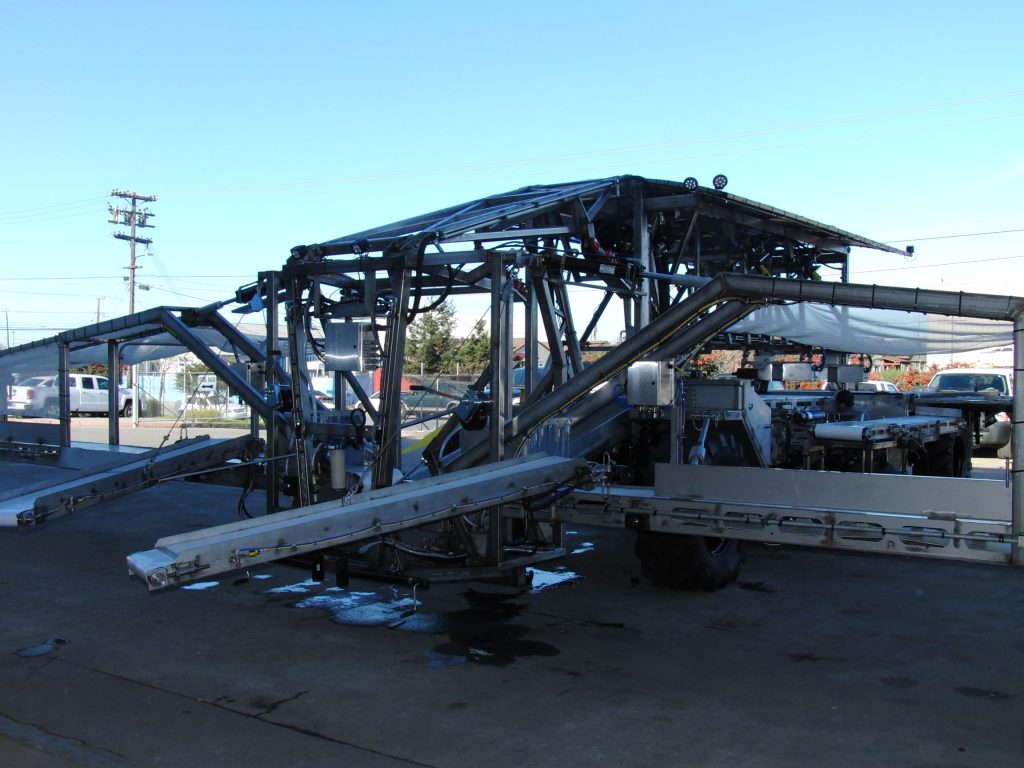

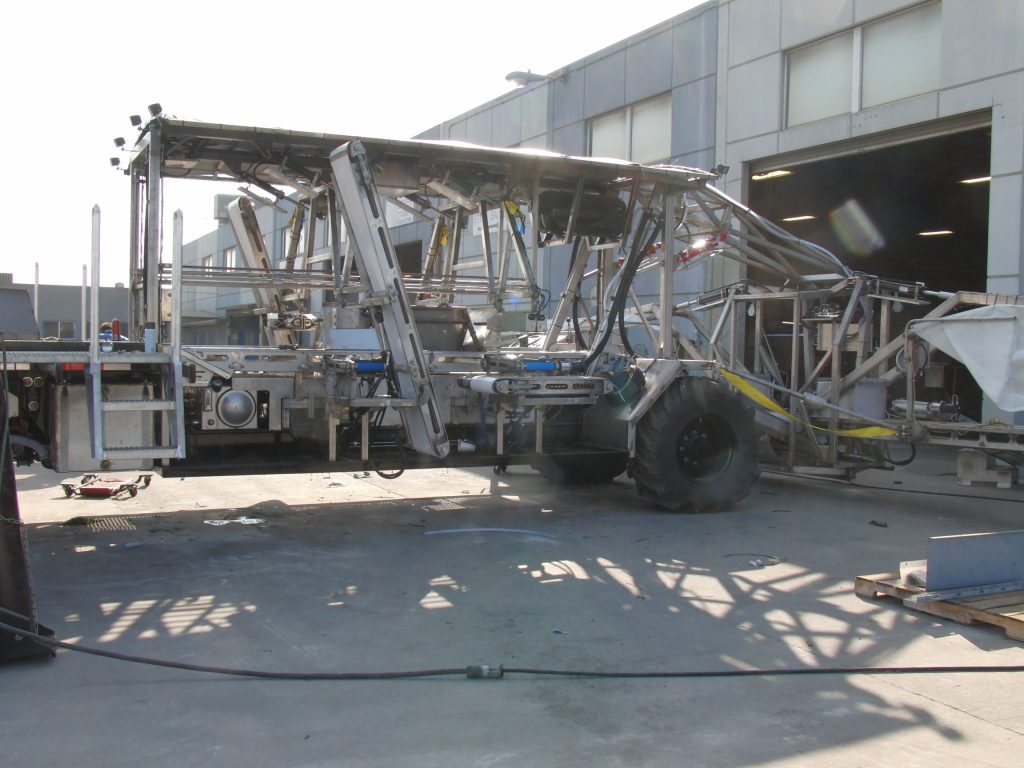

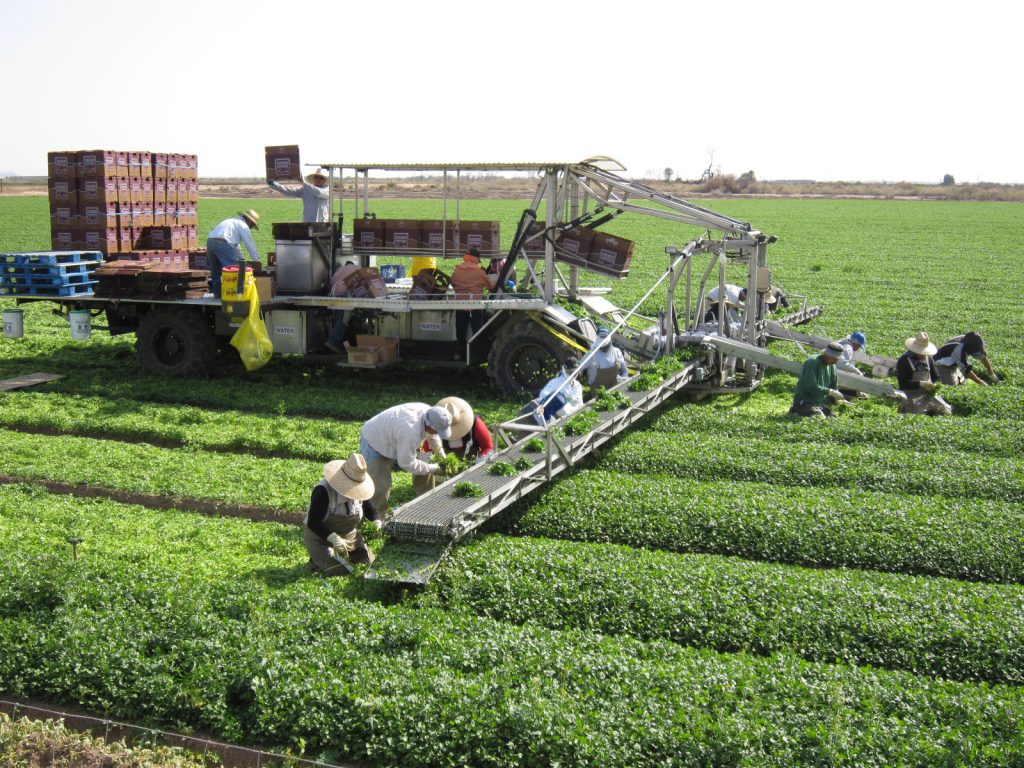

Cilantro Bunch Transfer CBT

  • Steel Frame and Transfer Deck
  • Stainless steel wings, conveyors, and packing structure
  • Stainless Steel Diesel and Fuel Tanks
  • Wing Span covers anywhere from 9 to 15 80″ beds

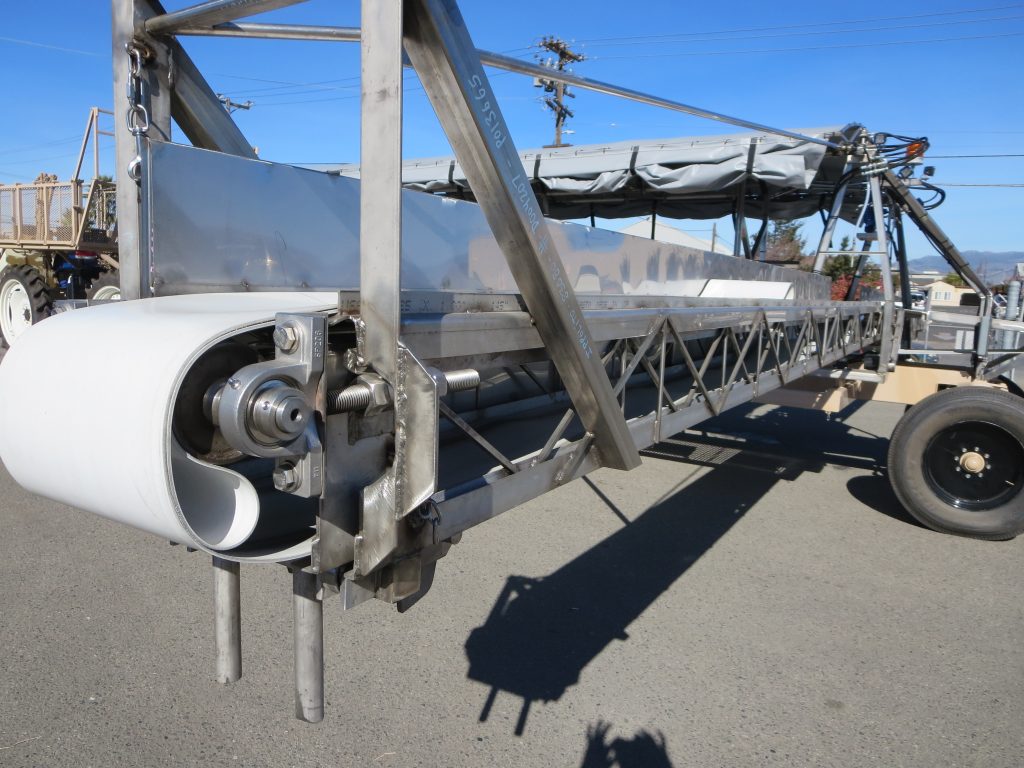

  • 16″ Wing conveyor, white RMV belting
  • Machine transport width of 120″

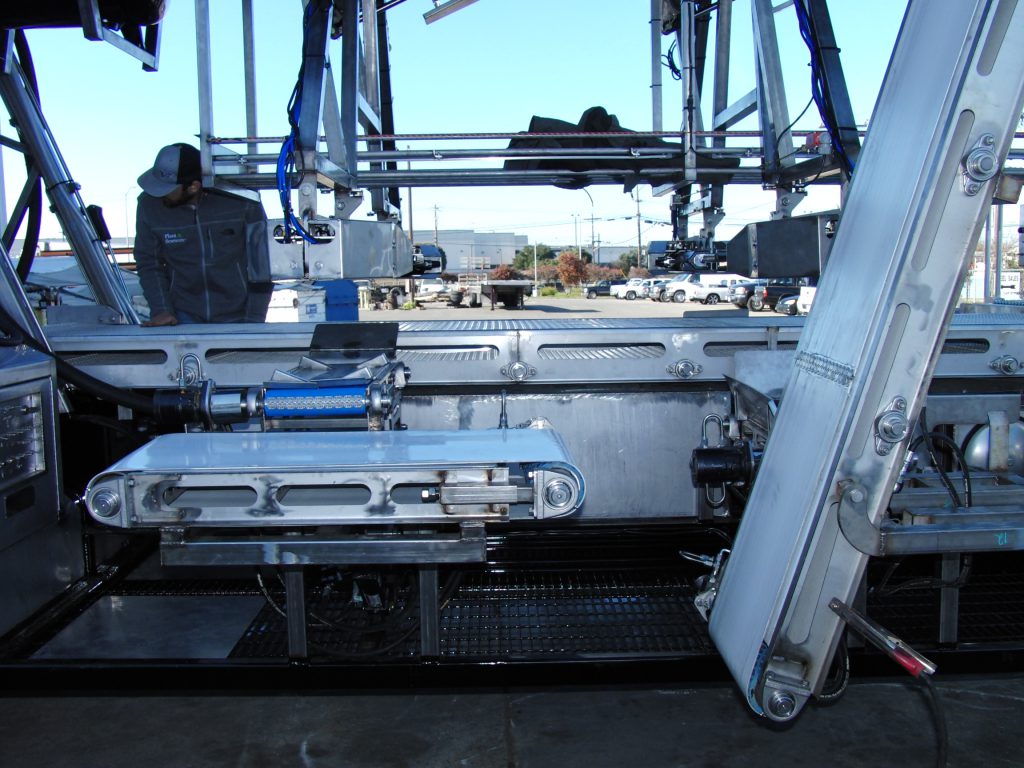

  • 6-chain 6-pallet transfer deck
  • Tarp roof to shade packing station

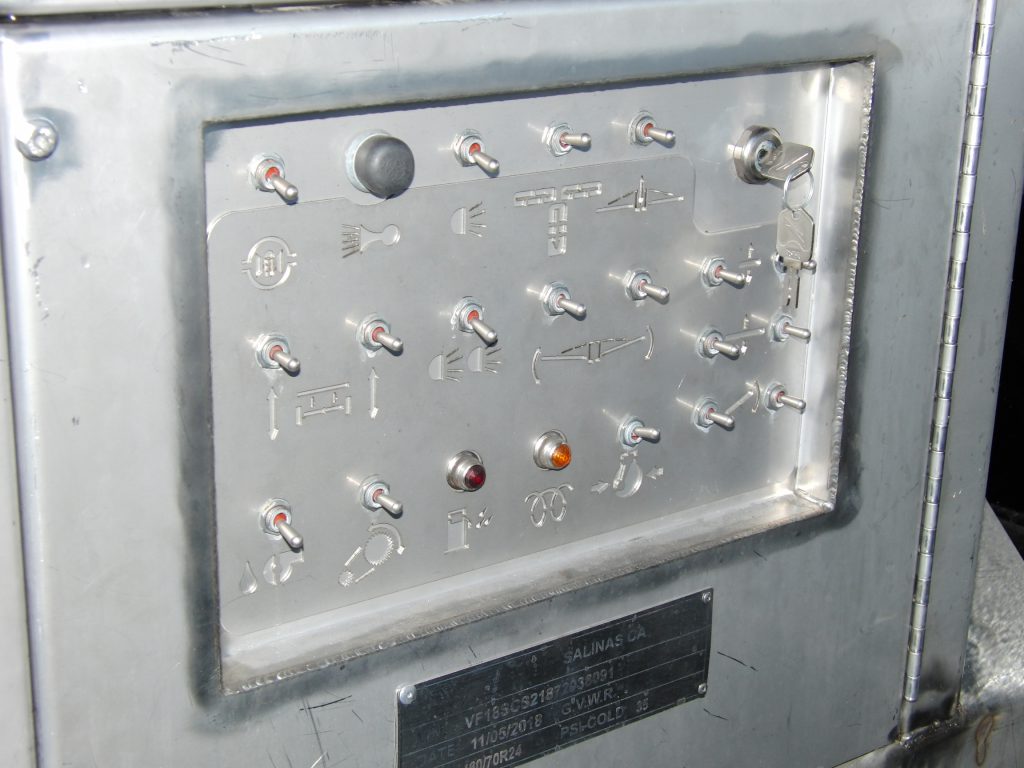

  • Operators station near the front left wheel
  • Centrally located box slide

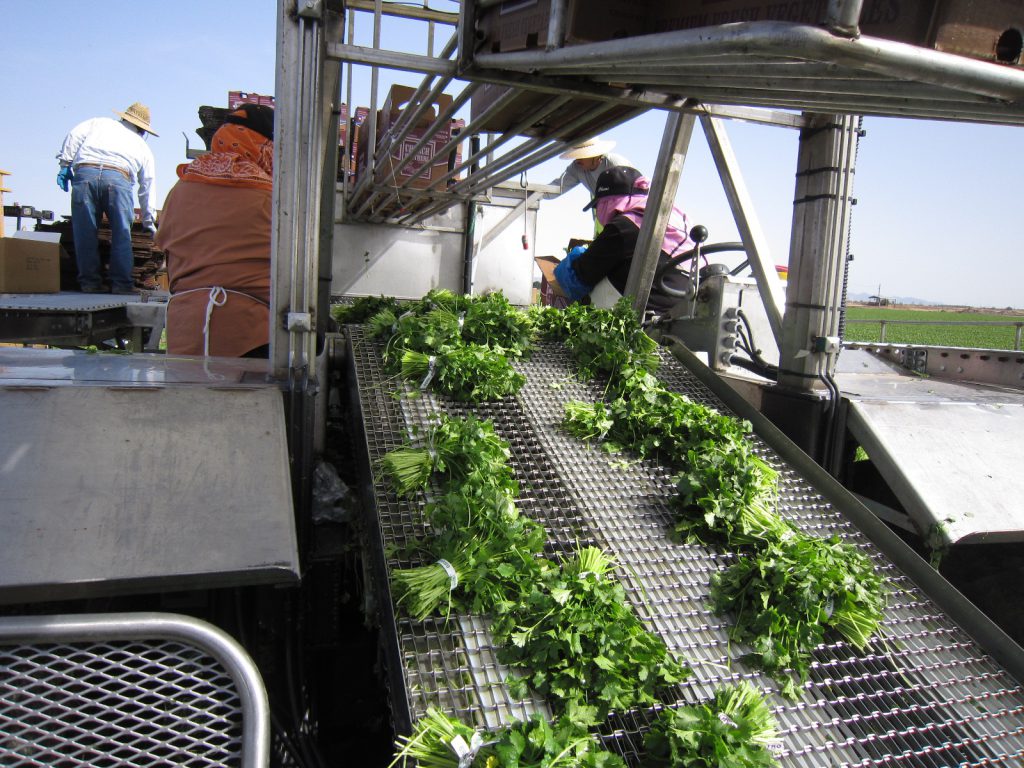

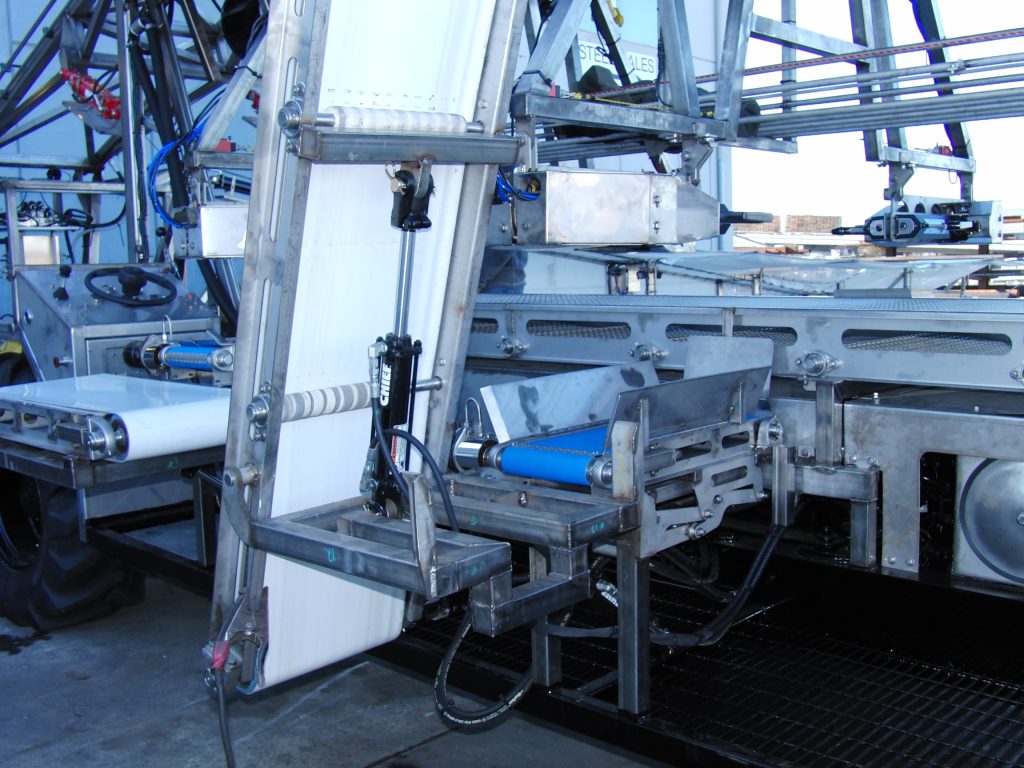

  • Central 1/2″ x 1″ flat wire conveyor for transporting produce
  • Outboard folding conveyors for transporting product or boxes
  • Cummins QSF2.8, 64 hp Engine, No DEF Rrequired
  • Hydraulic Oil Cooler
  • Electric generator on board
  • Rigid brand LED lighting on wings and packing areas
  • Hydraulic driven water pump
  • Two water tanks, stainless steel construction
  • Spray chambers on the wing and/or the center pack/sort belt.
  • Pressure washer with hose real

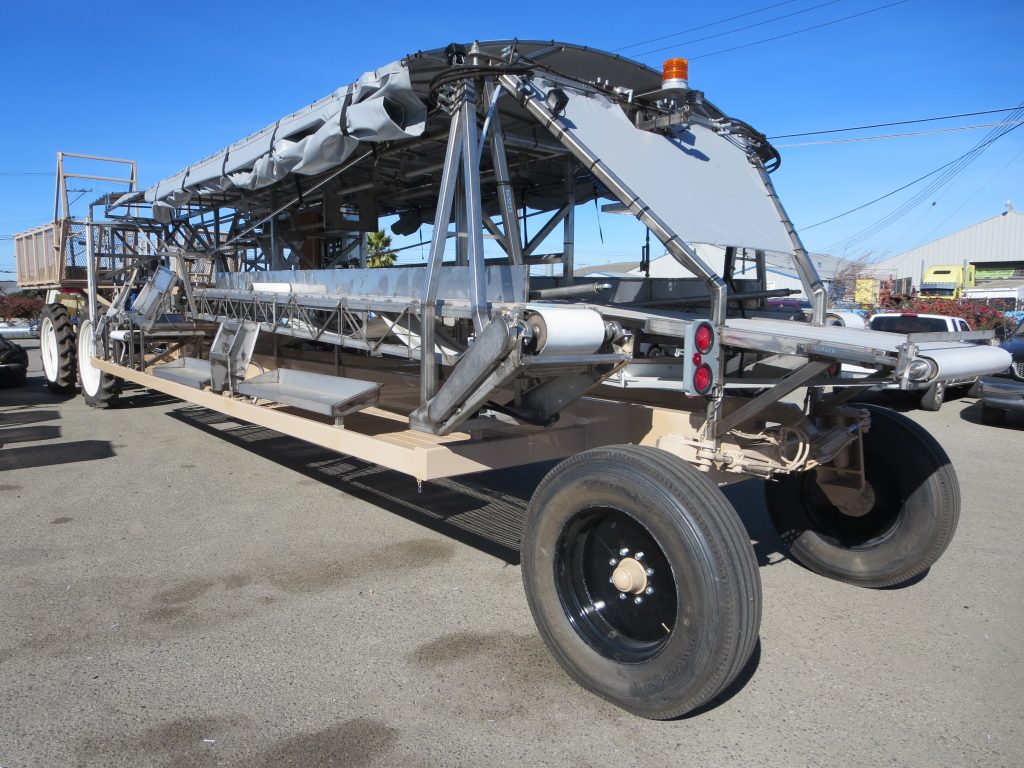

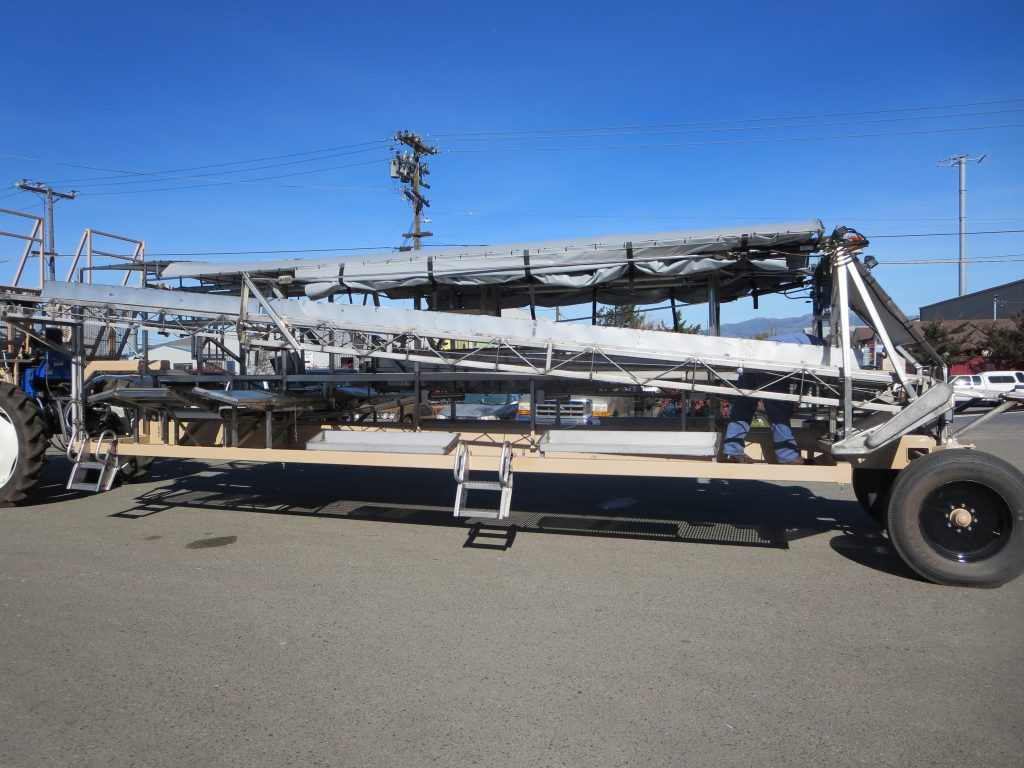

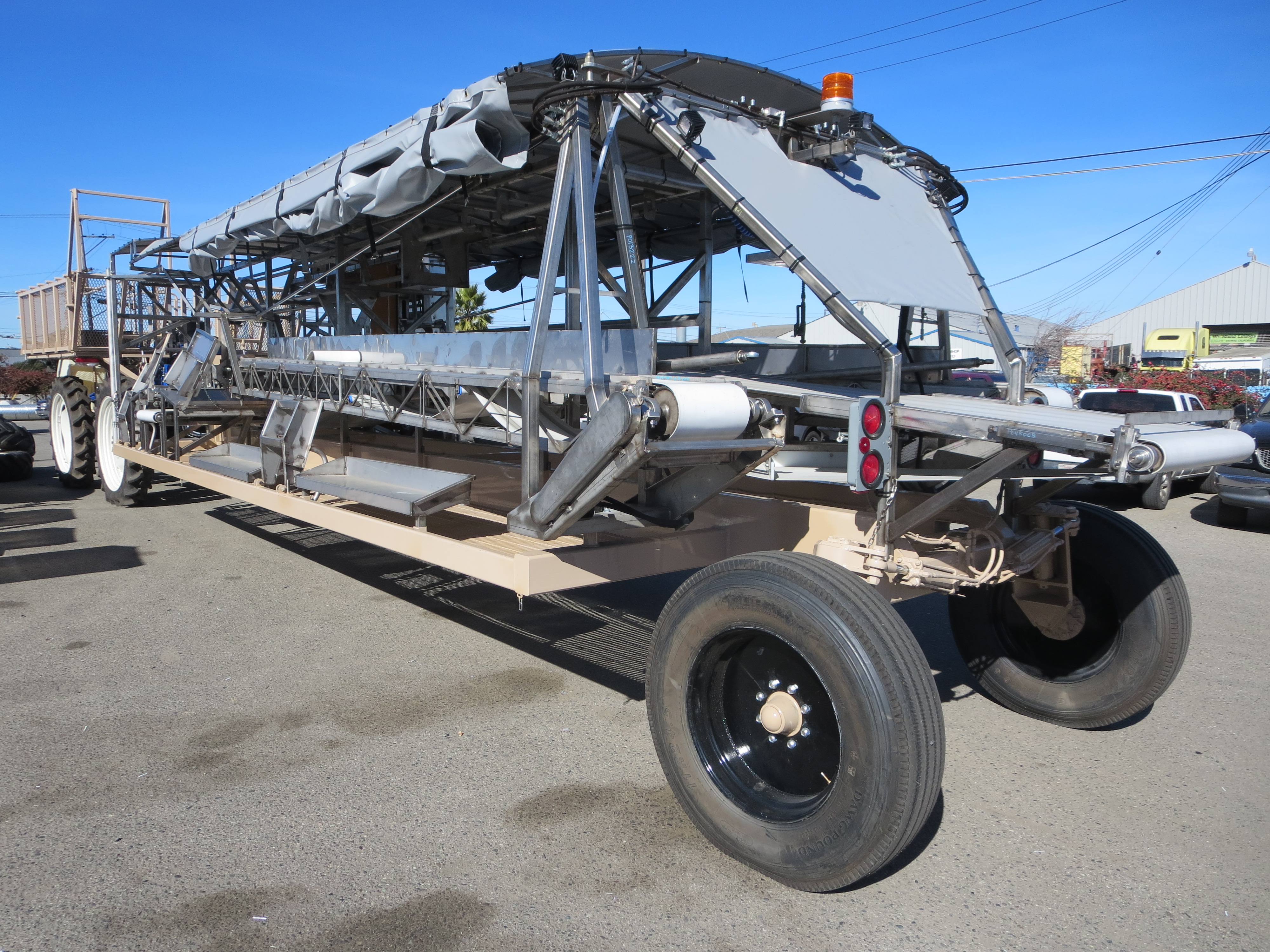

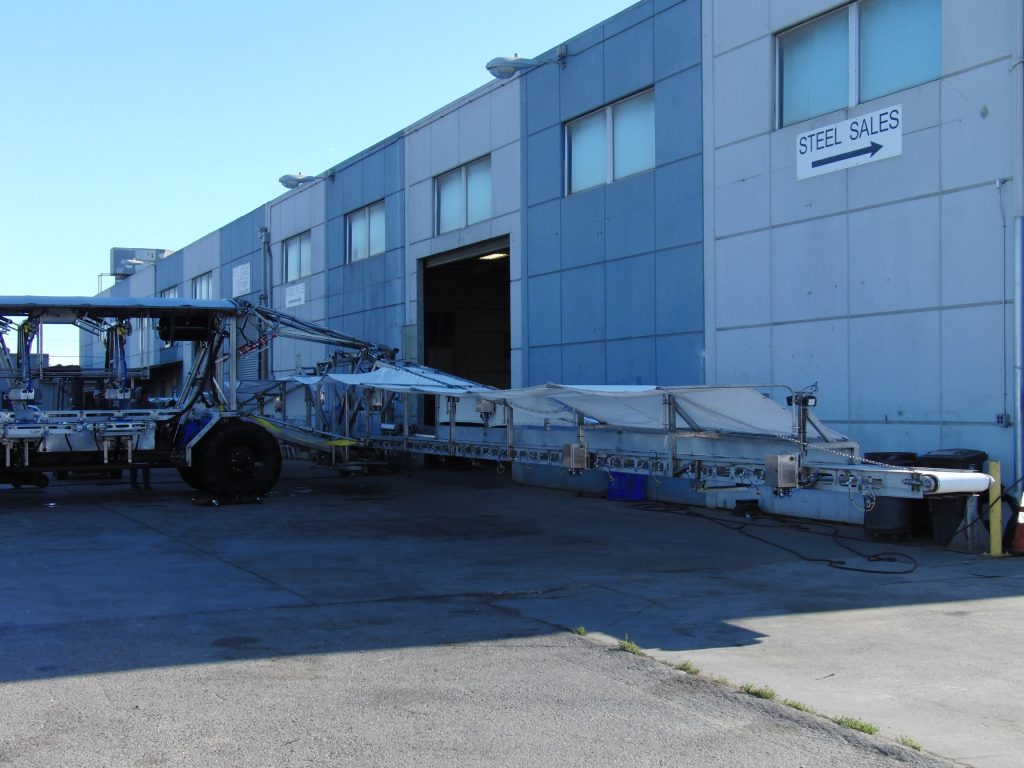

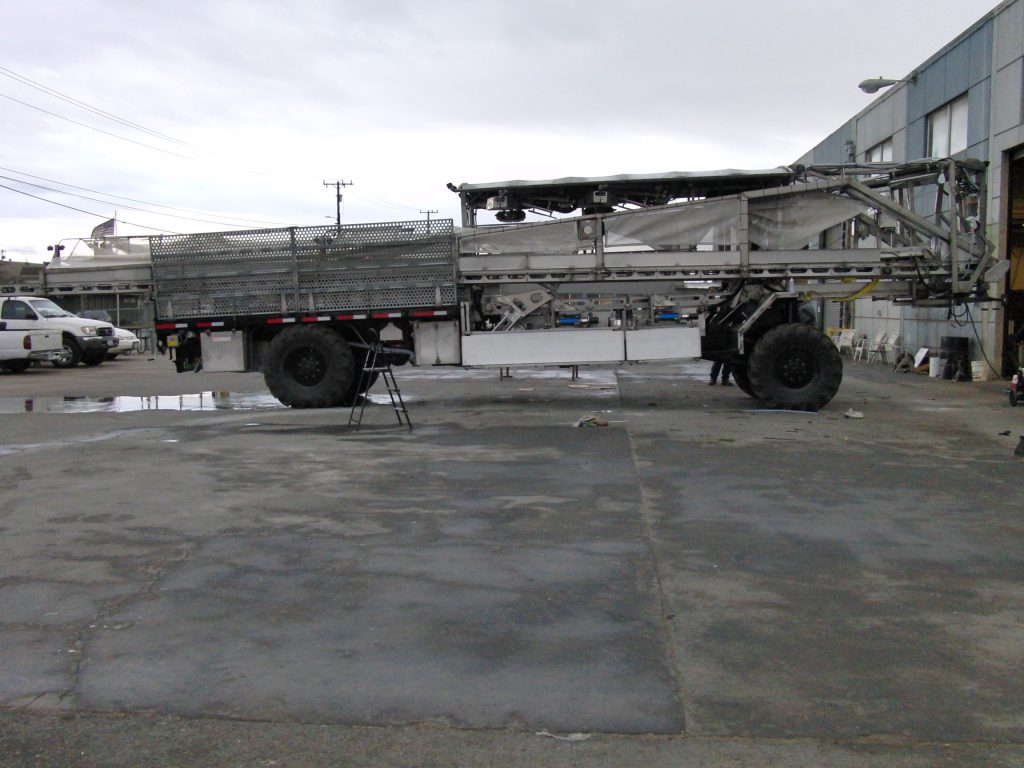

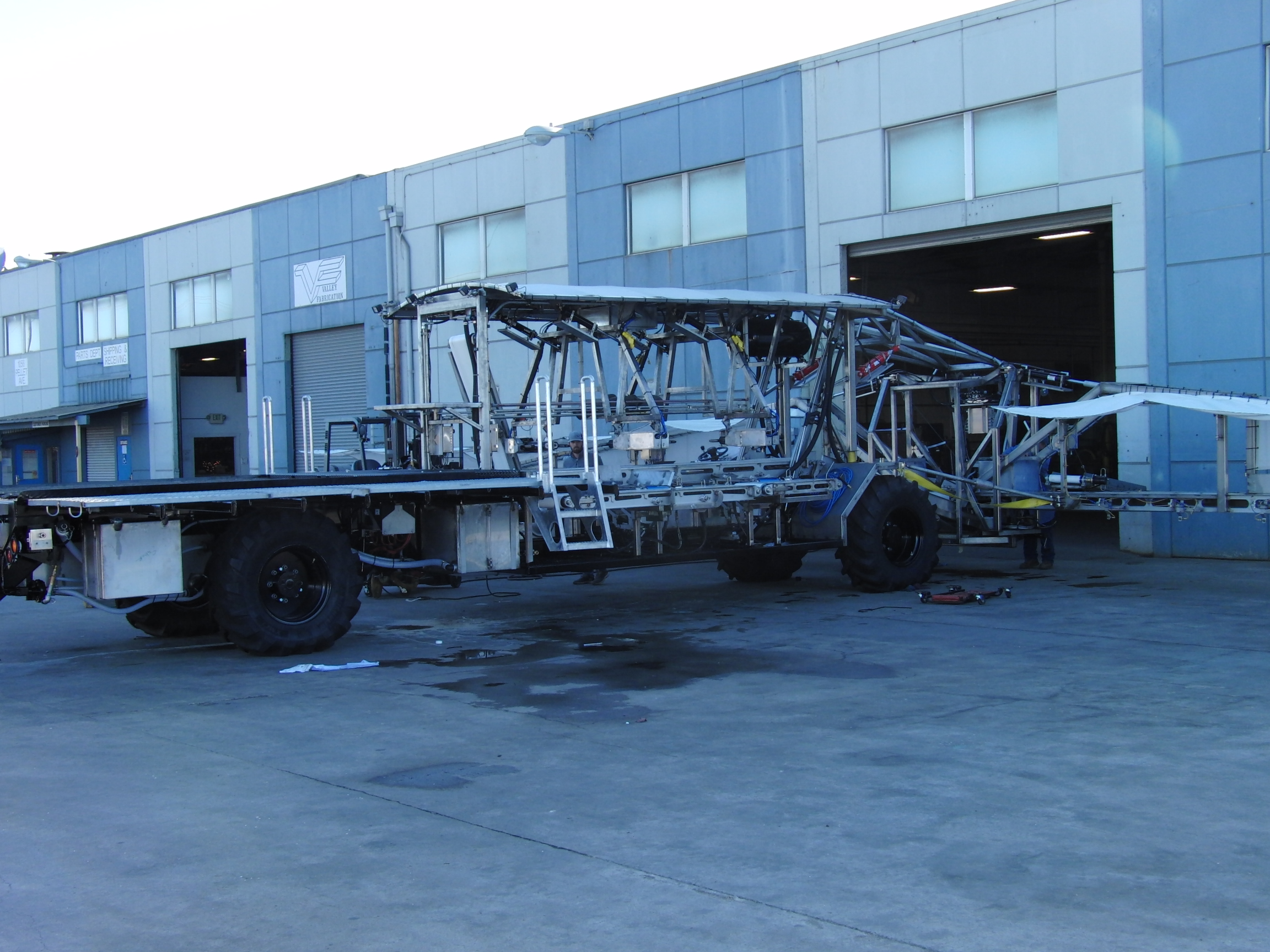

T-Belt Gooseneck Cauliflower

  • Rear Axle to King pin on tractor, approximately 35 feet 8 inches
  • Width within 120 inches

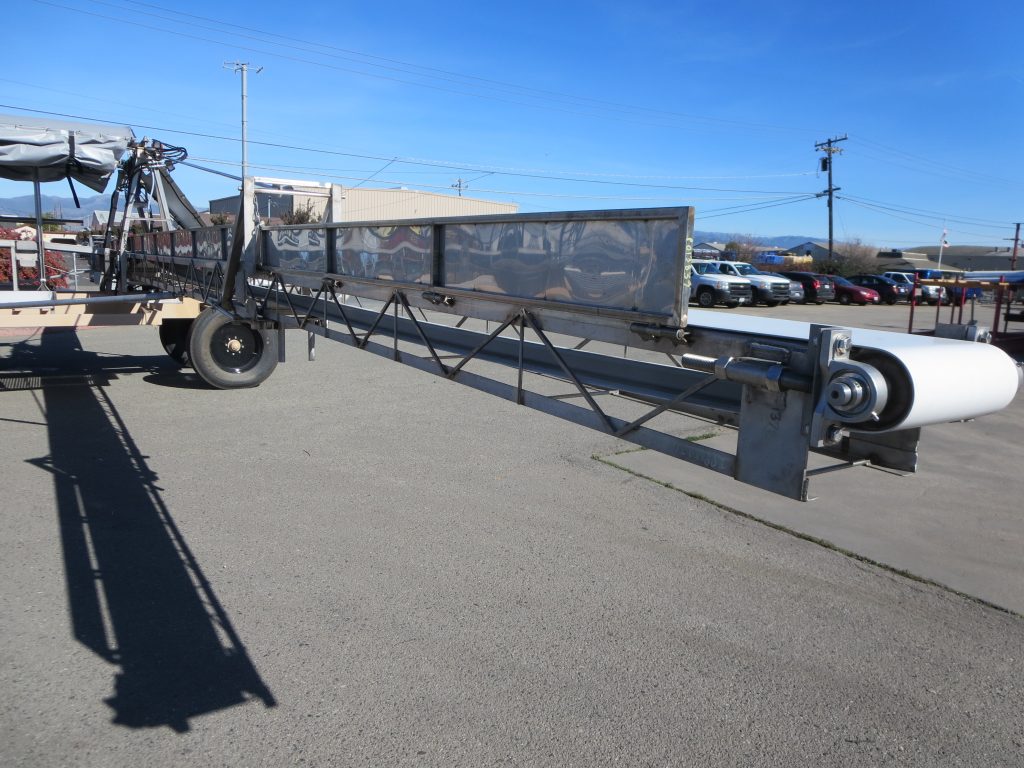

  • Telescoping SS wings to cover 19, 40 inch beds
  • 4 packing stations
  • 2 cauliflower spary nozzles where the wing meets the main conveyor
  • 32 inch crop clearance
  • 1 inch thick bar grading flooring
  • Main Belt 34 inches from the floor
  • Auxiliary hydraulic tank with oil cooler
  • All belts and conveyors on machine will be powered by a pressure compensated pump off the tractor PTO

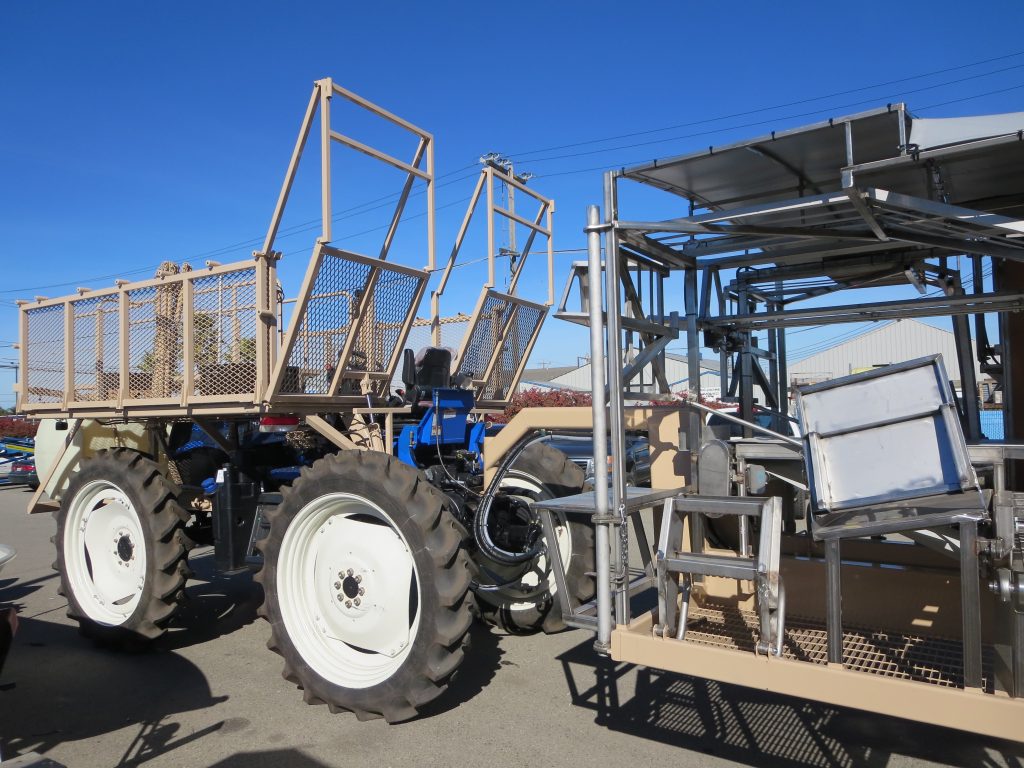

Tractor Features

  • Painted Mild Steel Or Stainless Steel Construction
  • Hydraulic Fold up side platforms
  • Hydraulic Fold up rear box making stations
  • Hydraulic lift on engine cover catwalk
  • Water tank on front of tractor
  • Hydraulic powered water pump for spay nozzles on machine
