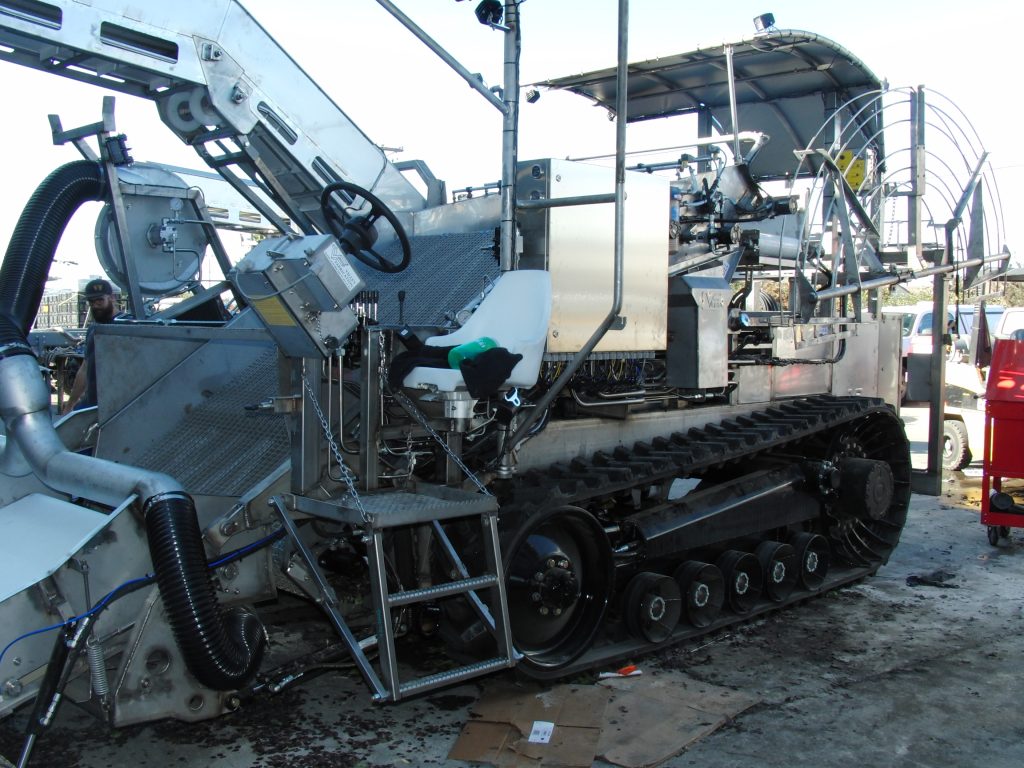

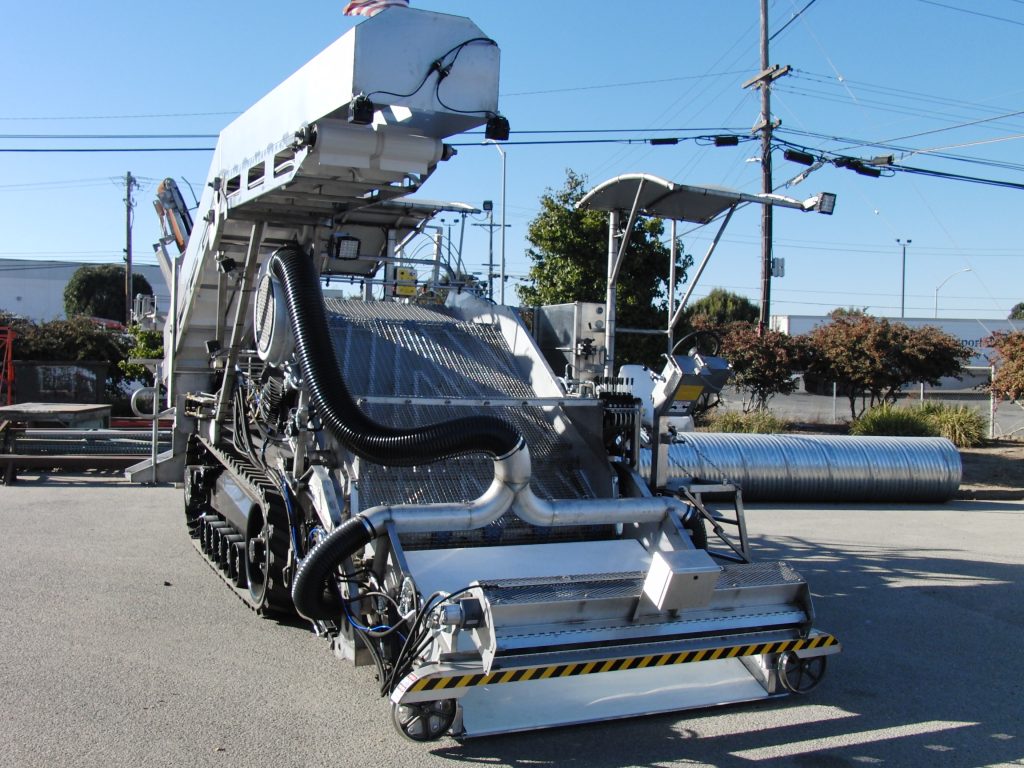

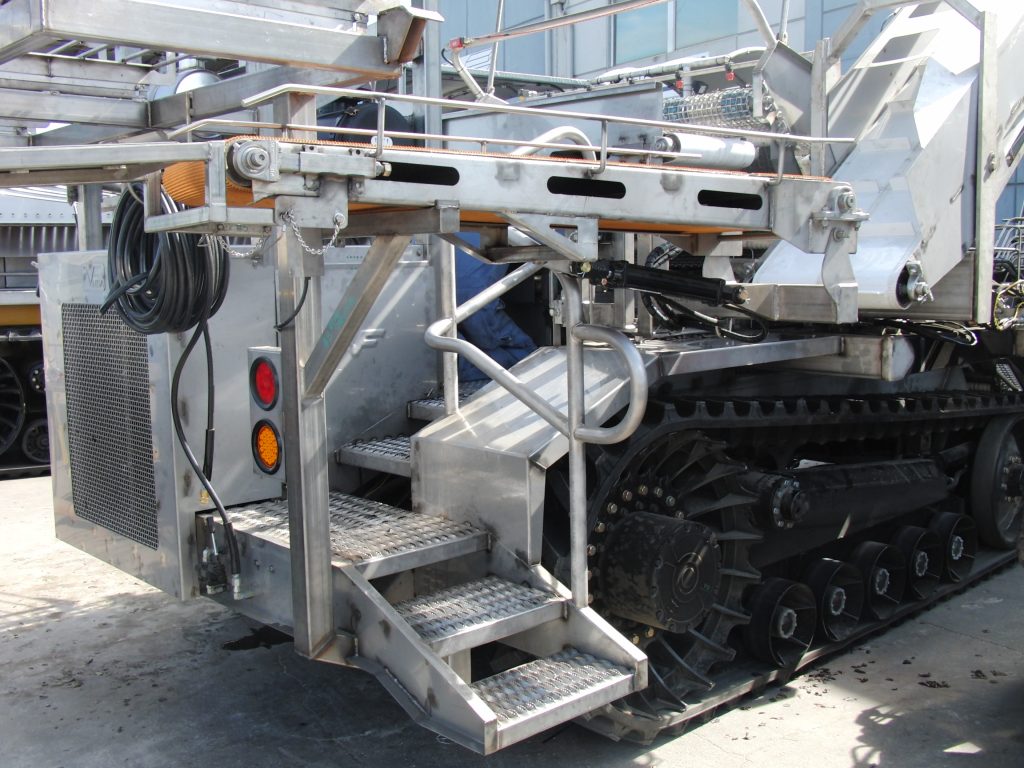

Leaf Cutter 8000

Machine Features:

  • 16″ x 324″ Goodyear Rubber Tracks on 79″ Centers On Valley Fabrication Standard 30,000 lb Undercarriage, painted mild steel
  • From the track undercarriage up, all metal will be stainless steel

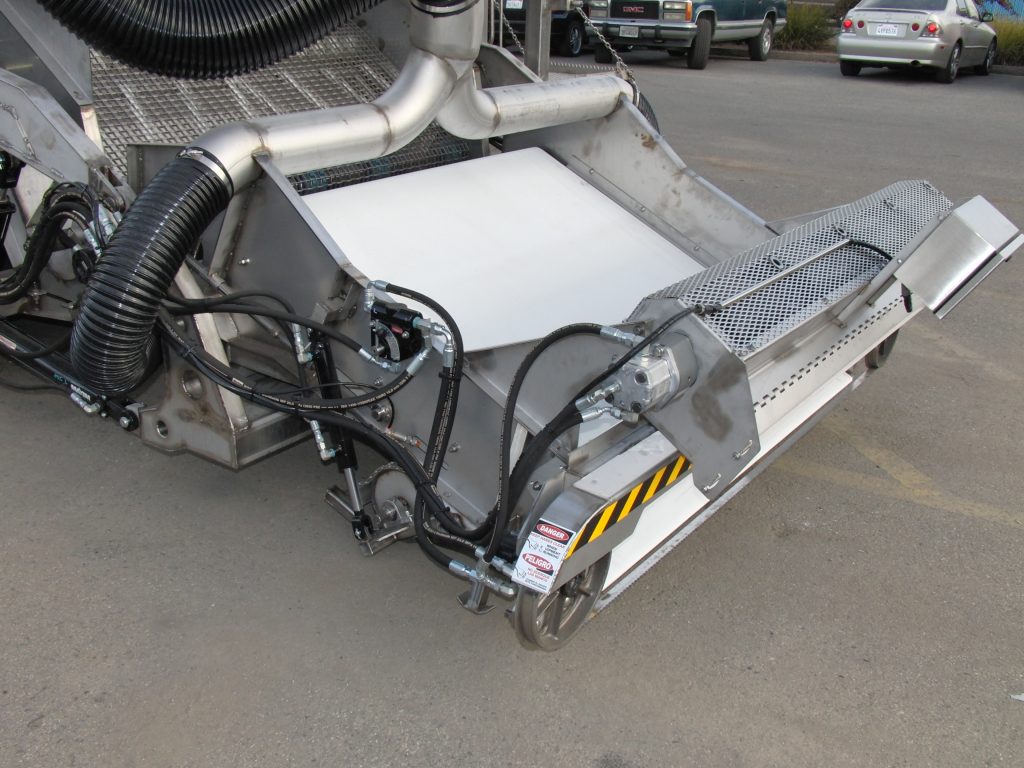

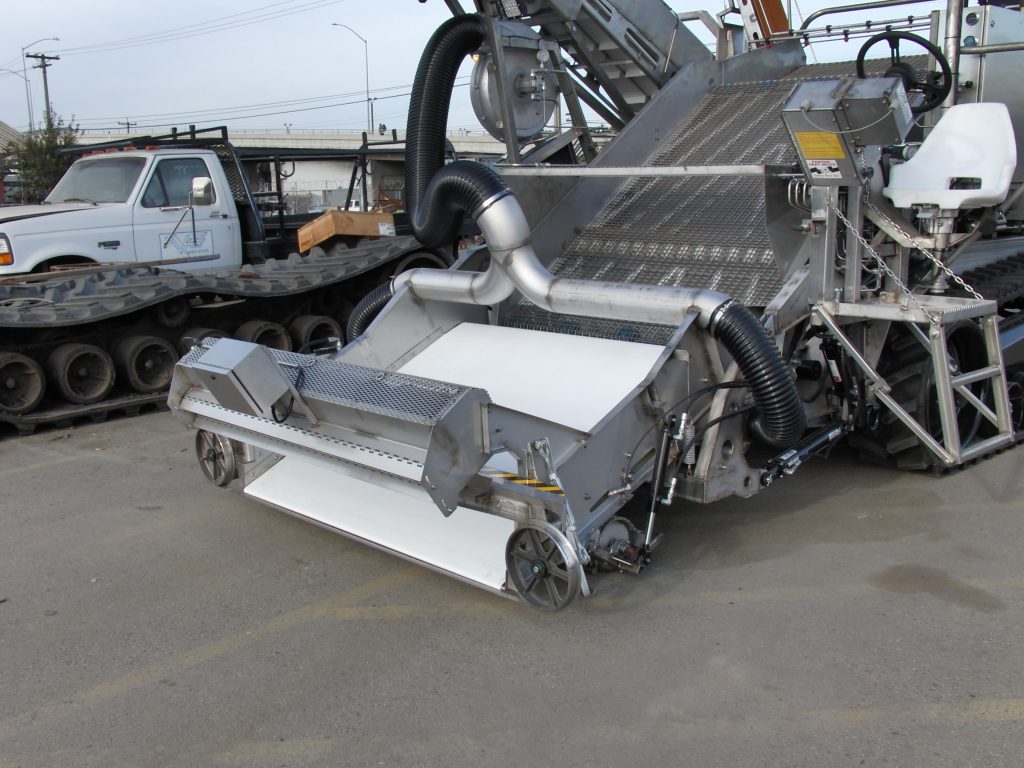

  • Standard Valley Fabrication Header on Float System
    • White Pick up belt
  • Dual Ground roller Adjustment Cylinders
  • Standard Air Jump with Crary Fan

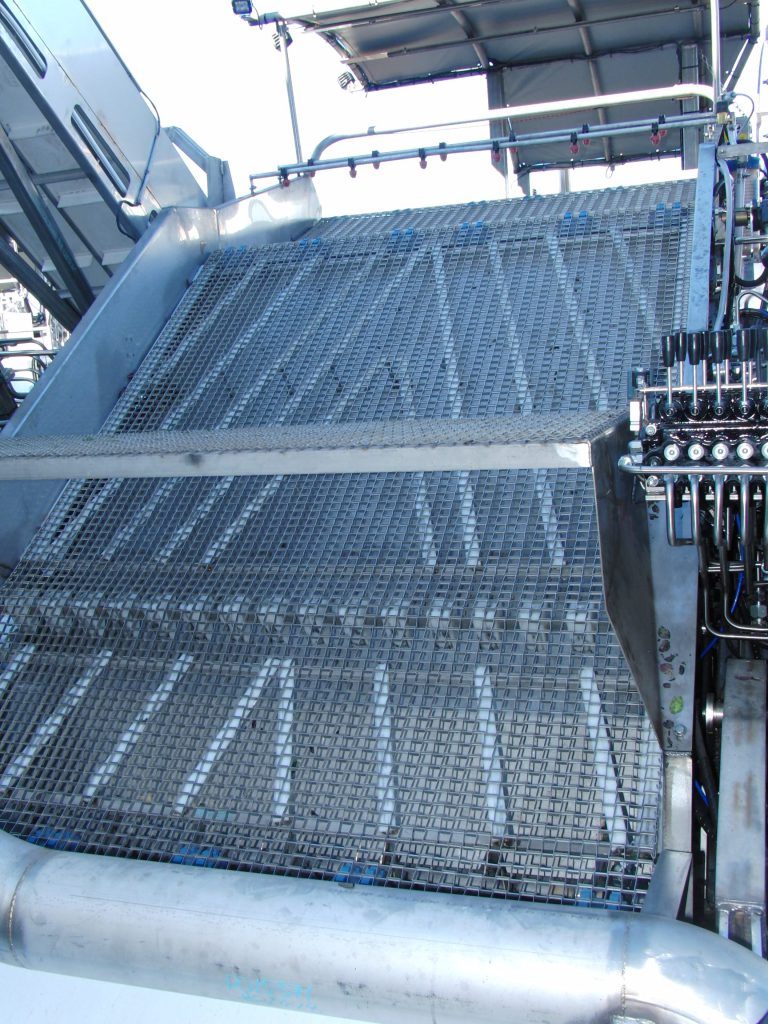

  • 2 Sort Conveyors with stainless steel flat wire 1 x 1 belting
    • Both Have agitation beaters
    • Both Have Stainless Steel Auger
  • 18″ Cross Conveyor with Lift Linkage for Bulk/Totes Mode with foot switch activation
  • 24″ Elevator on slide for Bulk Mode with 2″ flights
  • 18″ Tote Exit Conveyor For Totes Mode
  • Tote slide and 180 Sweep can be made with UHMW or round bar bottom
  • Cummins QSF3.8 Tier 4 Final, 130 hp
  • Folds up to withing 120″ width

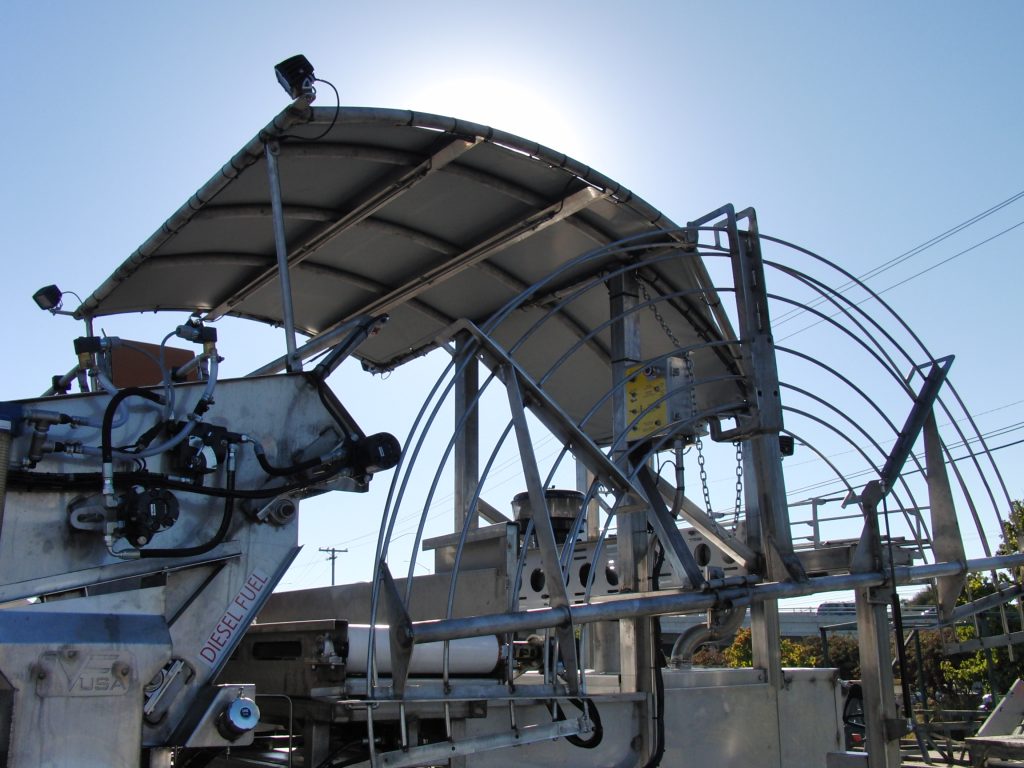

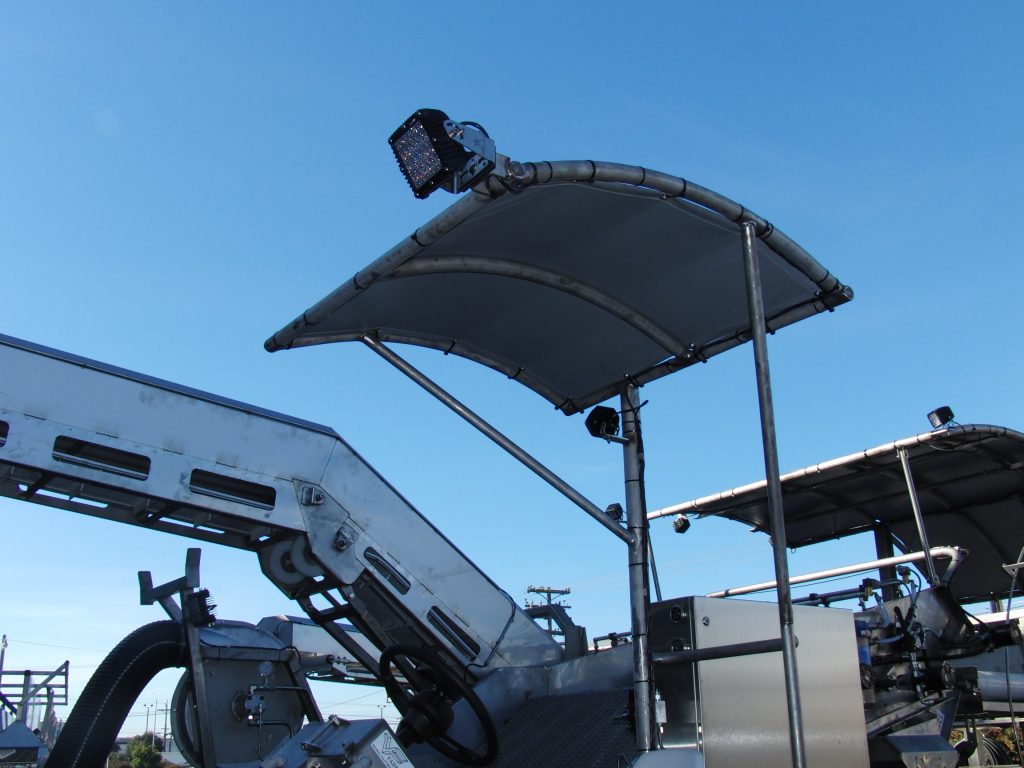

  • Roof over rear packing station

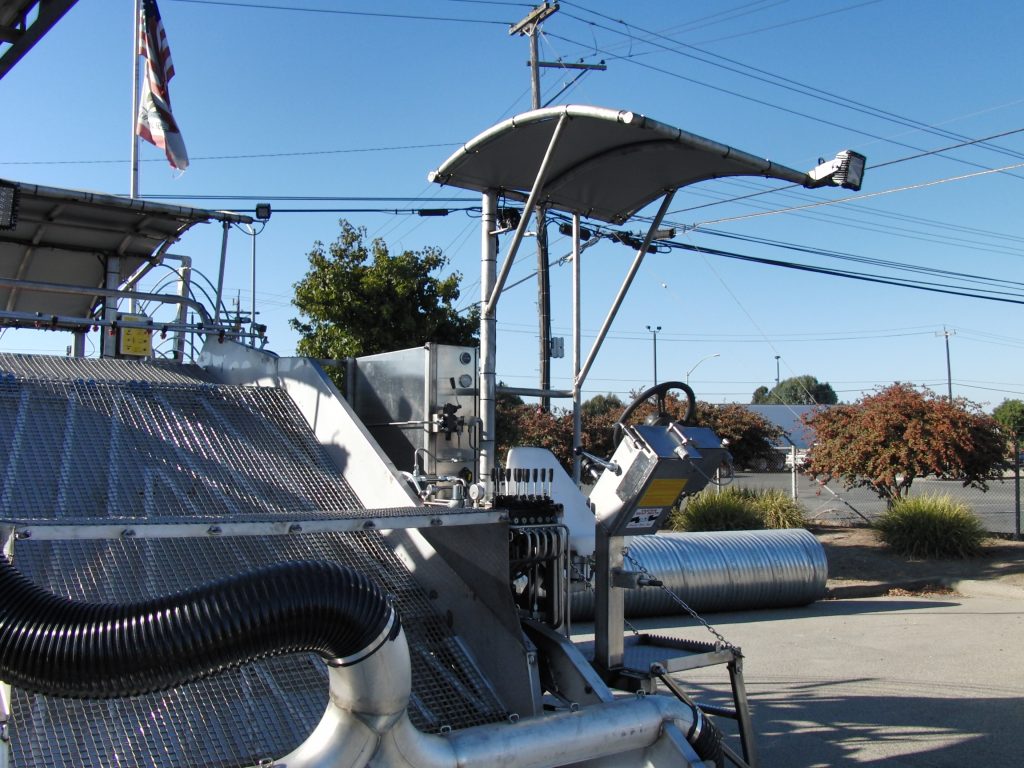

  • Fold in Roof over Driver

Leaf Cutter 4

  • 12″ Valley Fabrication tracks
  • QSF3.8 Cummins Tier 4 Final Engine, 130 hp
  • Valley Fabrication rocking beam
  • Stainless Steel construction from Frame Up
  • Standard Valley Fab Header and Float system
    • Supply water on the pick up belt for reduced friction and cooling
    • Standard Mol pickup belt
    • Squirrel cage mouse or forward blower mounted to the front of the conveyor (Optional)
    • Standard air jump
    • Standard 3/4″ nose bar
    • Removable belt side supports
  • Incline Conveyor with 3″ Flights
  • Single Sort Conveyor
    • One agitator
    • One Stainless Steel Auger
  • 18″ Cross Conveyor with Lift Linkage for Bulk/Tote Mode
  • 20″ Elevator Conveyor with 4″ flights
    • Rotates to reach inside and outside bin
  • 18″ Tote Exit Conveyor
  • Forklift Side to move Tote Exit and Elevator into Harvesting Position
    • Safety switches and sensors for safe and easy conversion from bulk to tote mode
  • Tote sweep made with UHMW or Round Bar bottom

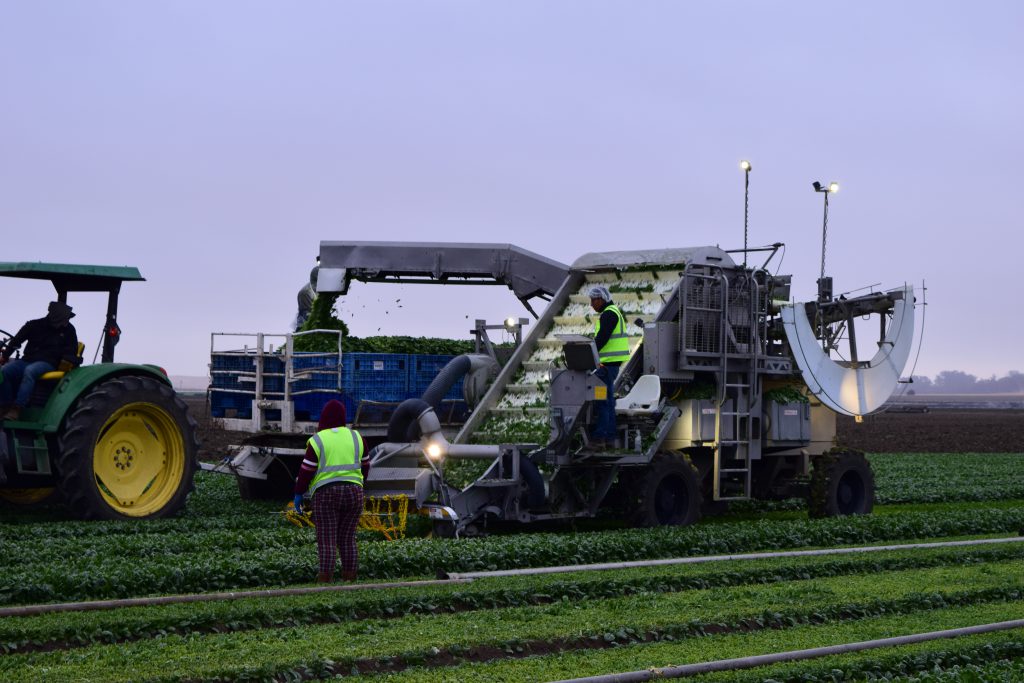

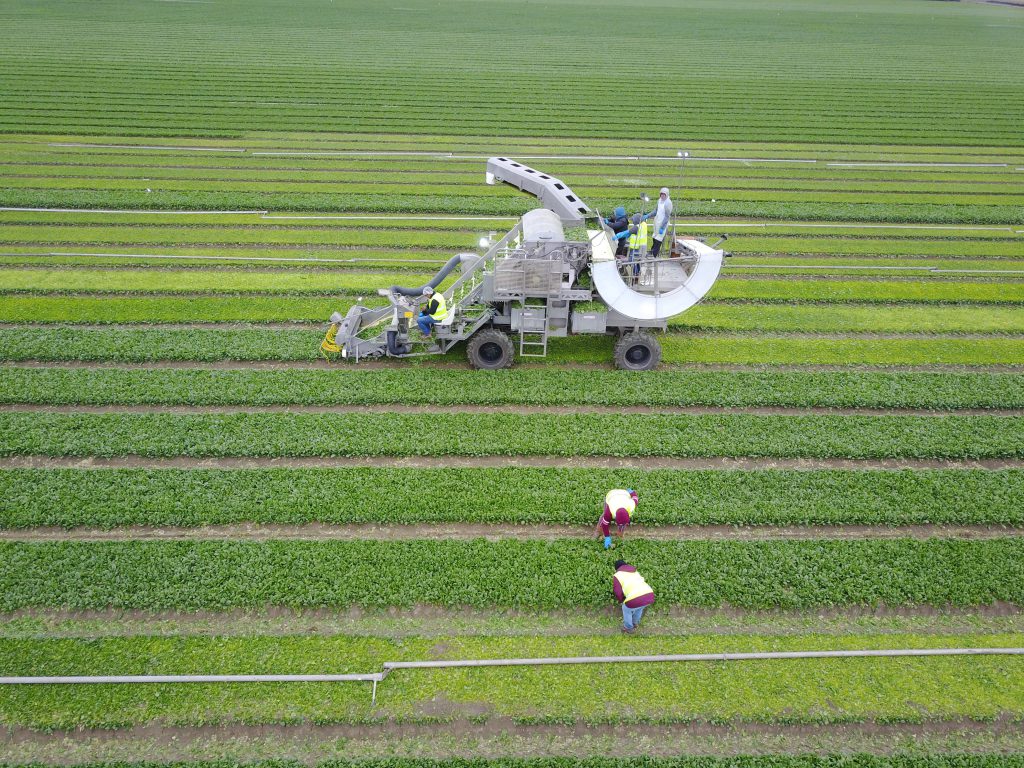

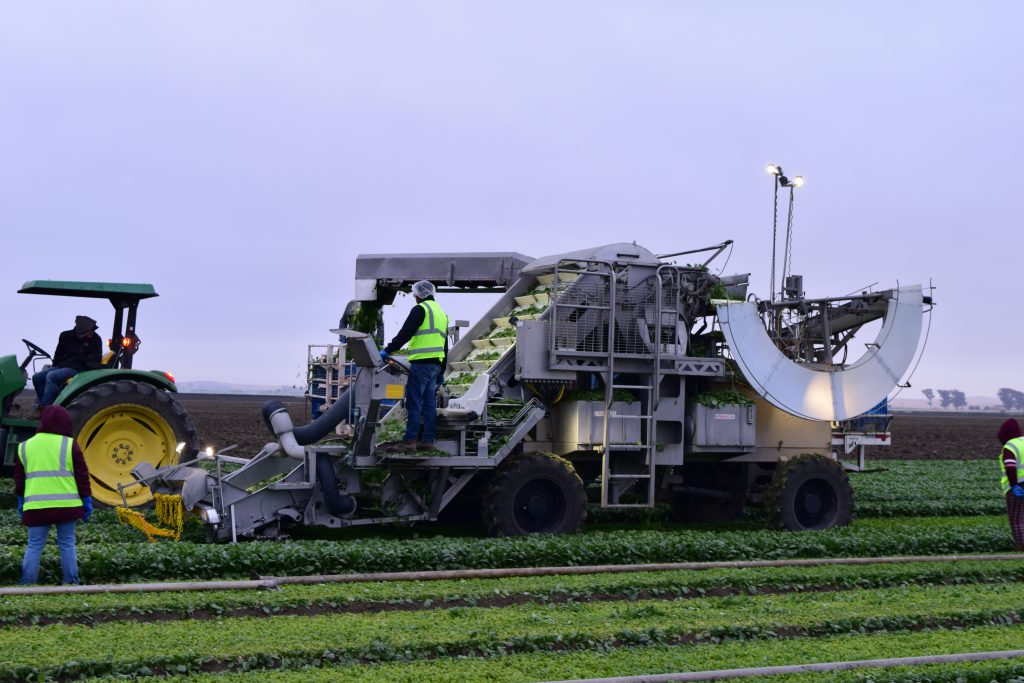

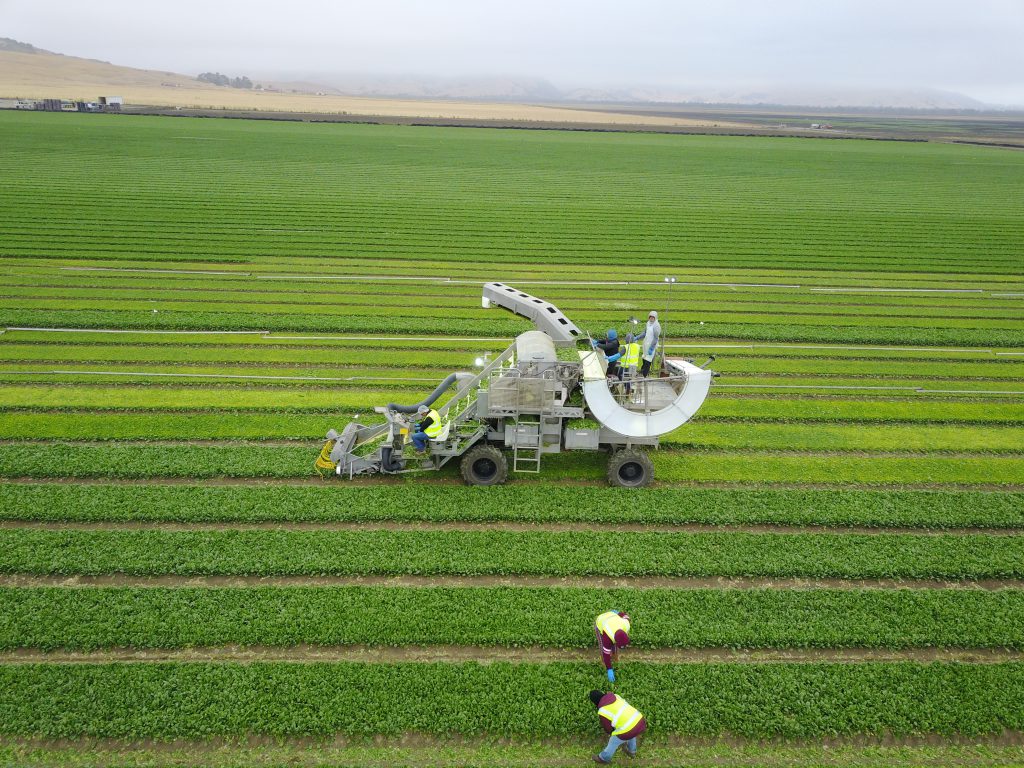

Leaf cutter SLS3000

  • Stainless Steel Construction
  • 12.4 x 24 tires on 82 inch centers
  • OMSI drive/steer planetary axles with 100% differential lock, and SAHR brakes
  • Machine top speed around 5 mph
  • Axle jacks for loading onto the trailer
  • Four Wheel steering with automatic centering rear axle
  • QSF3.8 Cummins Tier 4 Final Engine, 130 hp
  • Standard Valley Fab Header and Float system
    • Supply water on the pick up belt for reduced friction and cooling
    • Standard Mol pickup belt
    • Squirrel cage mouse or forward blower mounted to the front of the conveyor (Optional)
    • Standard air jump
    • Standard 3/4″ nose bar
    • Removable belt side supports
  • Incline conveyor RMV with 4 inch flights
  • One Sort conveyor with Dual Agitators, Dual Stainless Steel Augers
  • 100 gal Water tank with hydraulic water pump
  • Forward facing Mouse Blower (Optional)
  • Standard VFI float header with float system
  • 20″ wide cross conveyor with lift linkage to go from bulk to totes mode
  • Side load elevator, 24″ wide white RMV crescent top belt
  • Elevator rotates out to reach both the close and far bins on the trailer
  • 180 folding tote sweep with either UHMW or Round bar bottom
  • Powered empty tote in-feed conveyor
  • Machine under 120″ width
