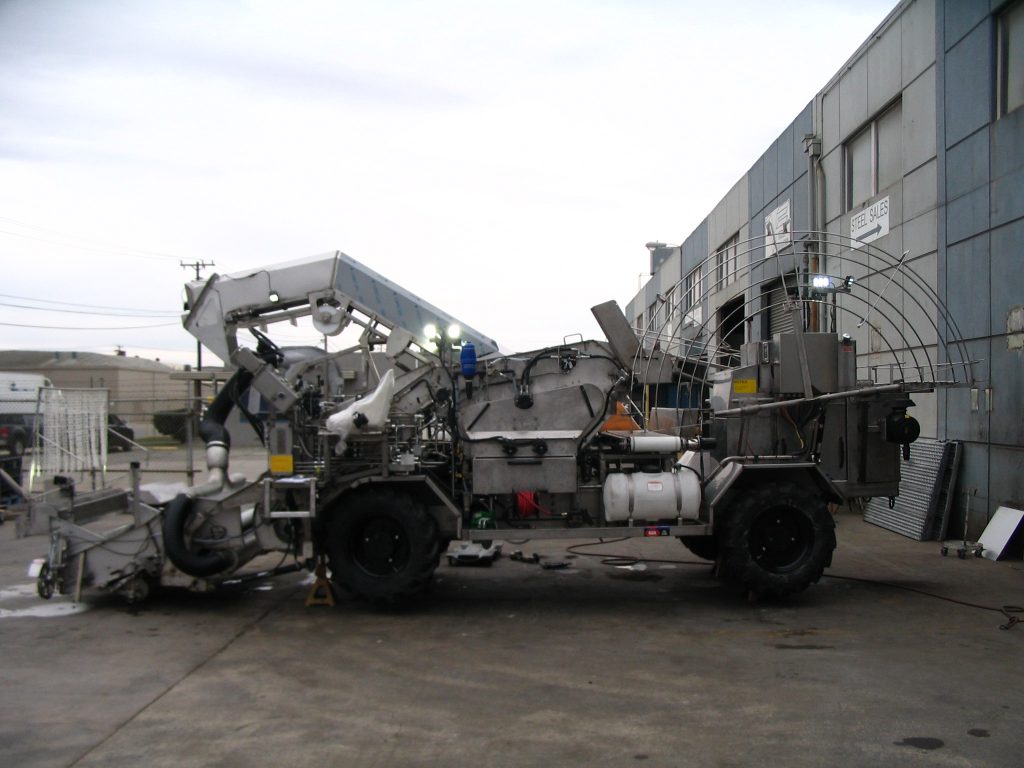

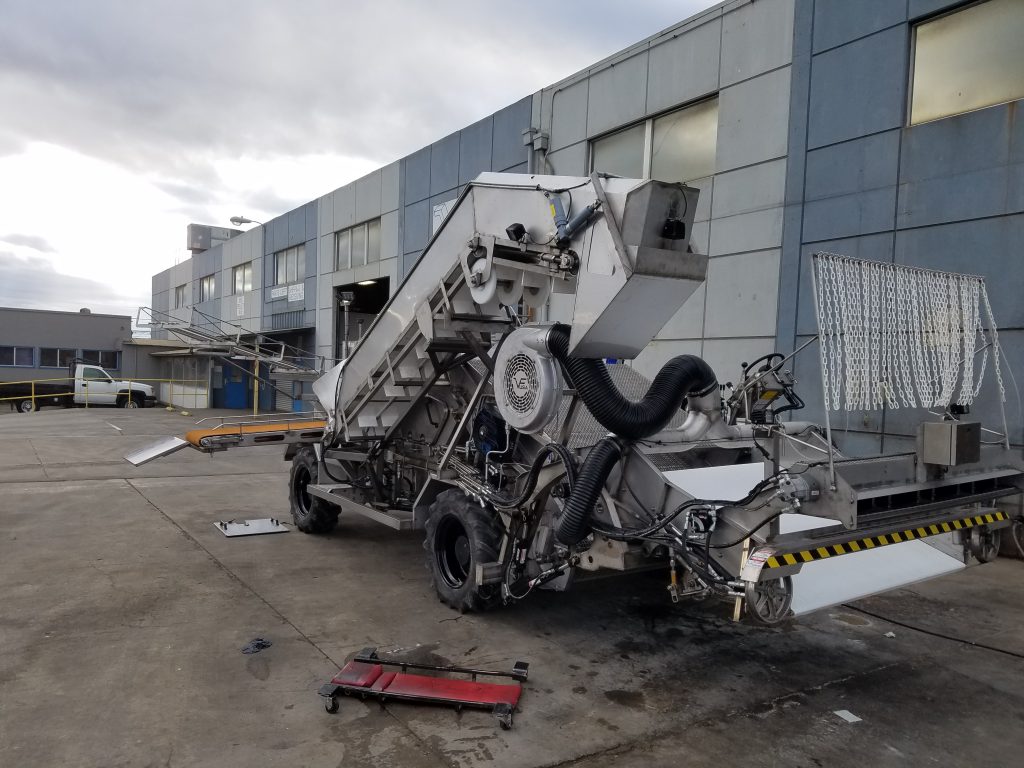

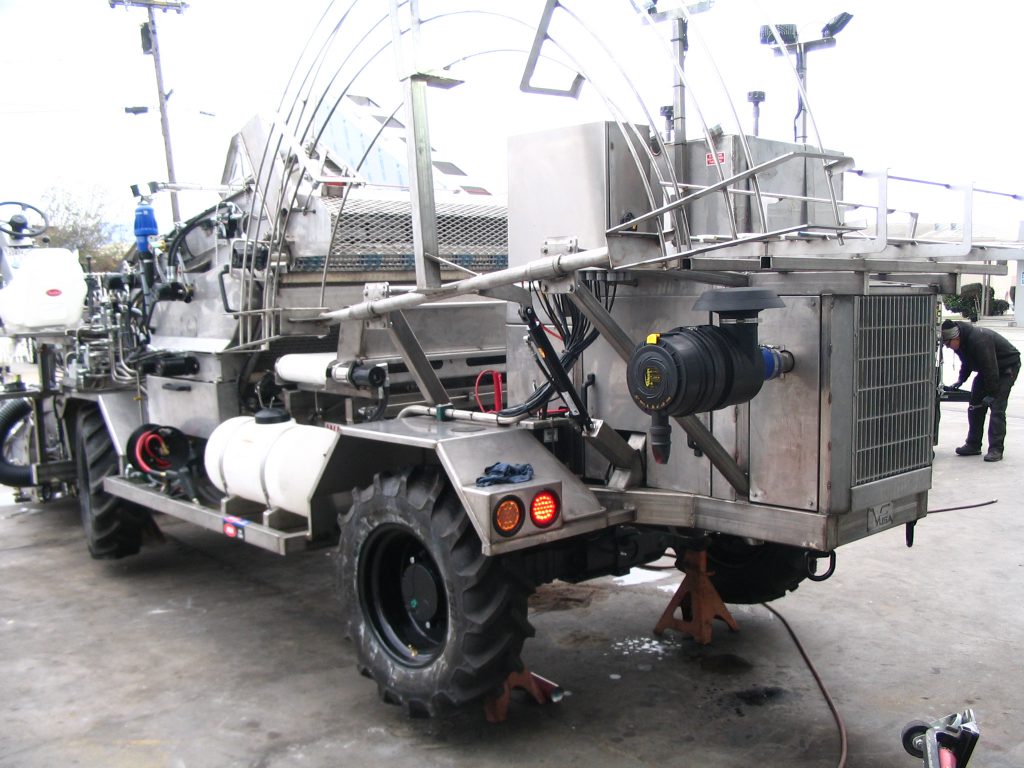

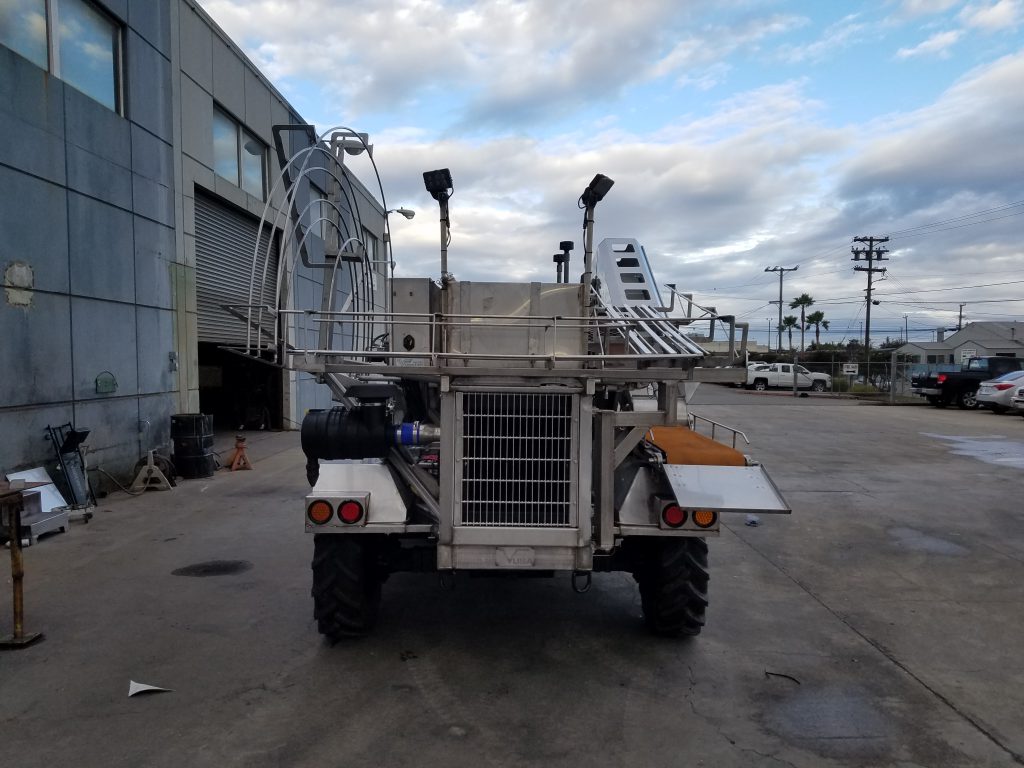

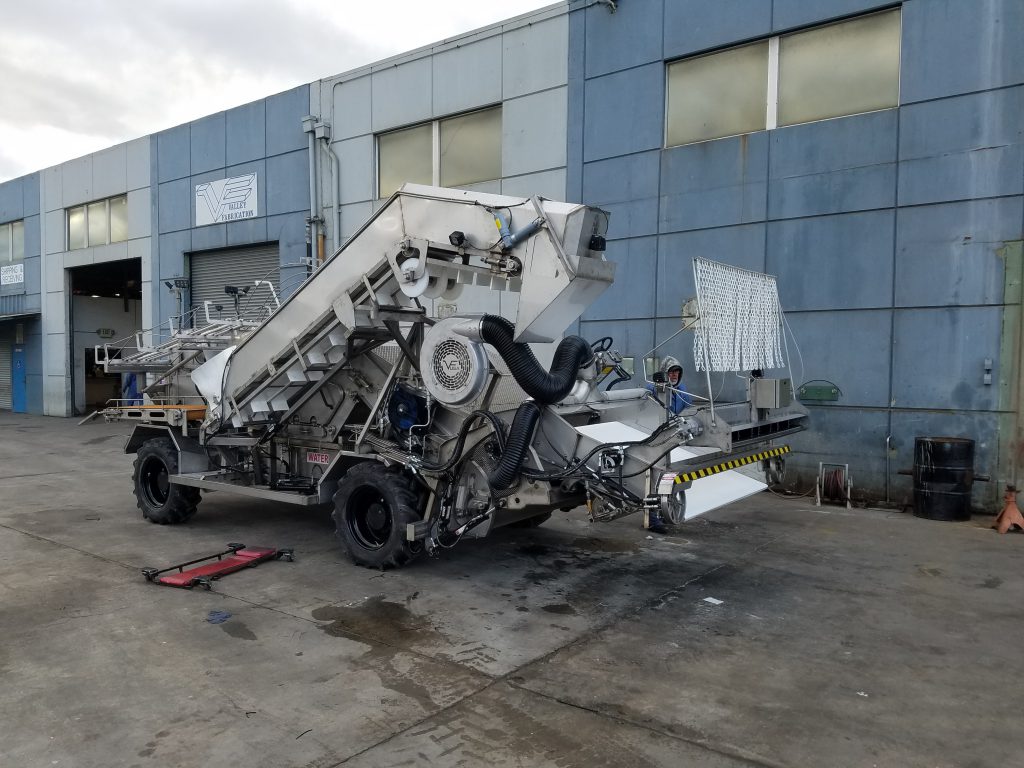

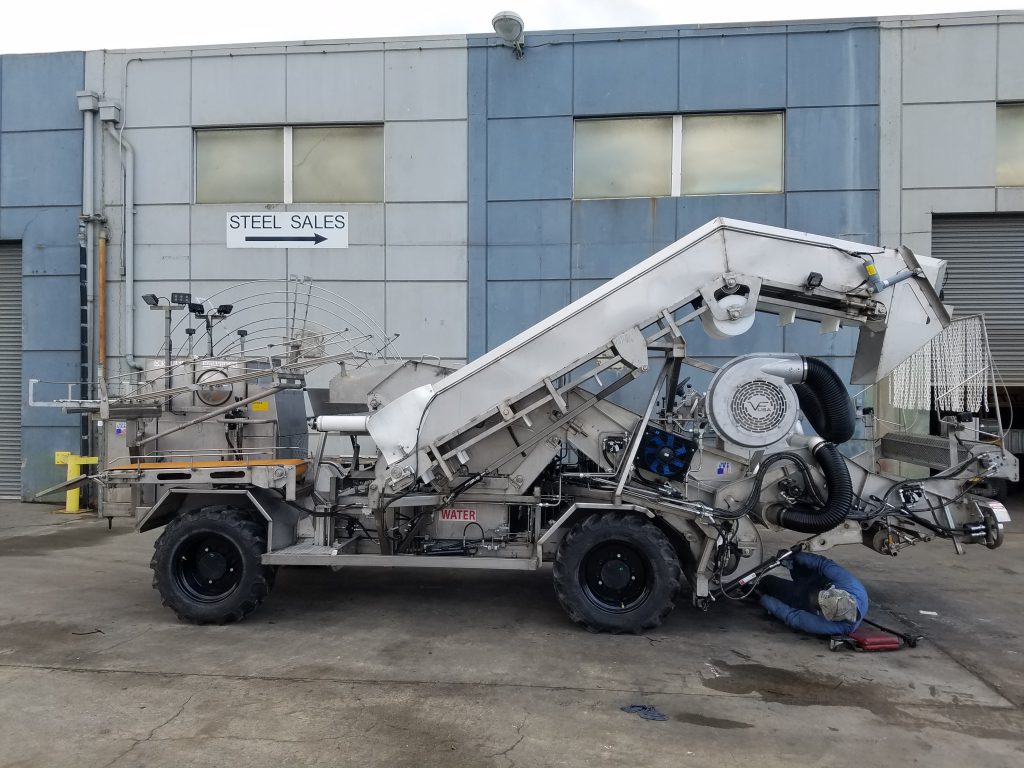

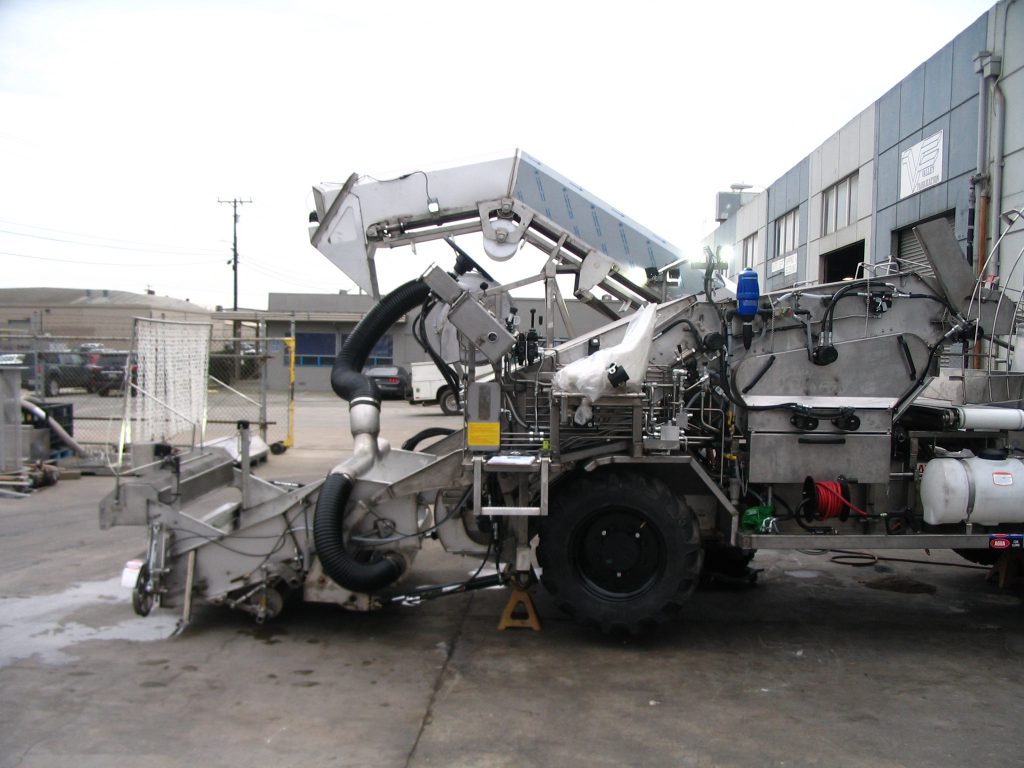

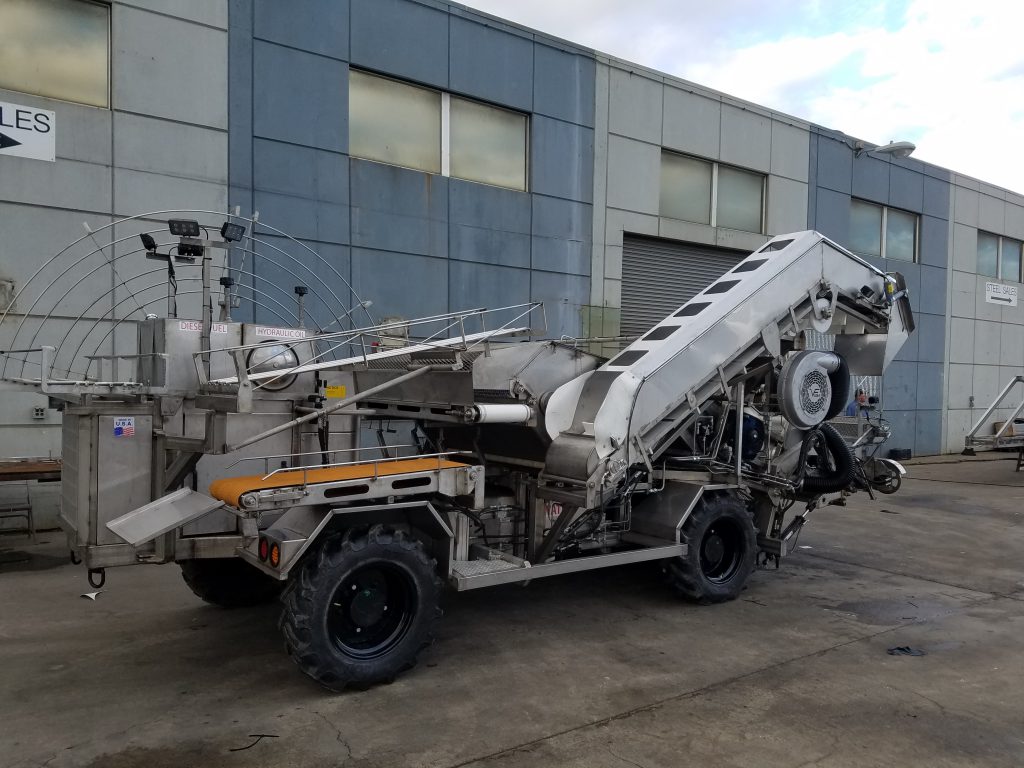

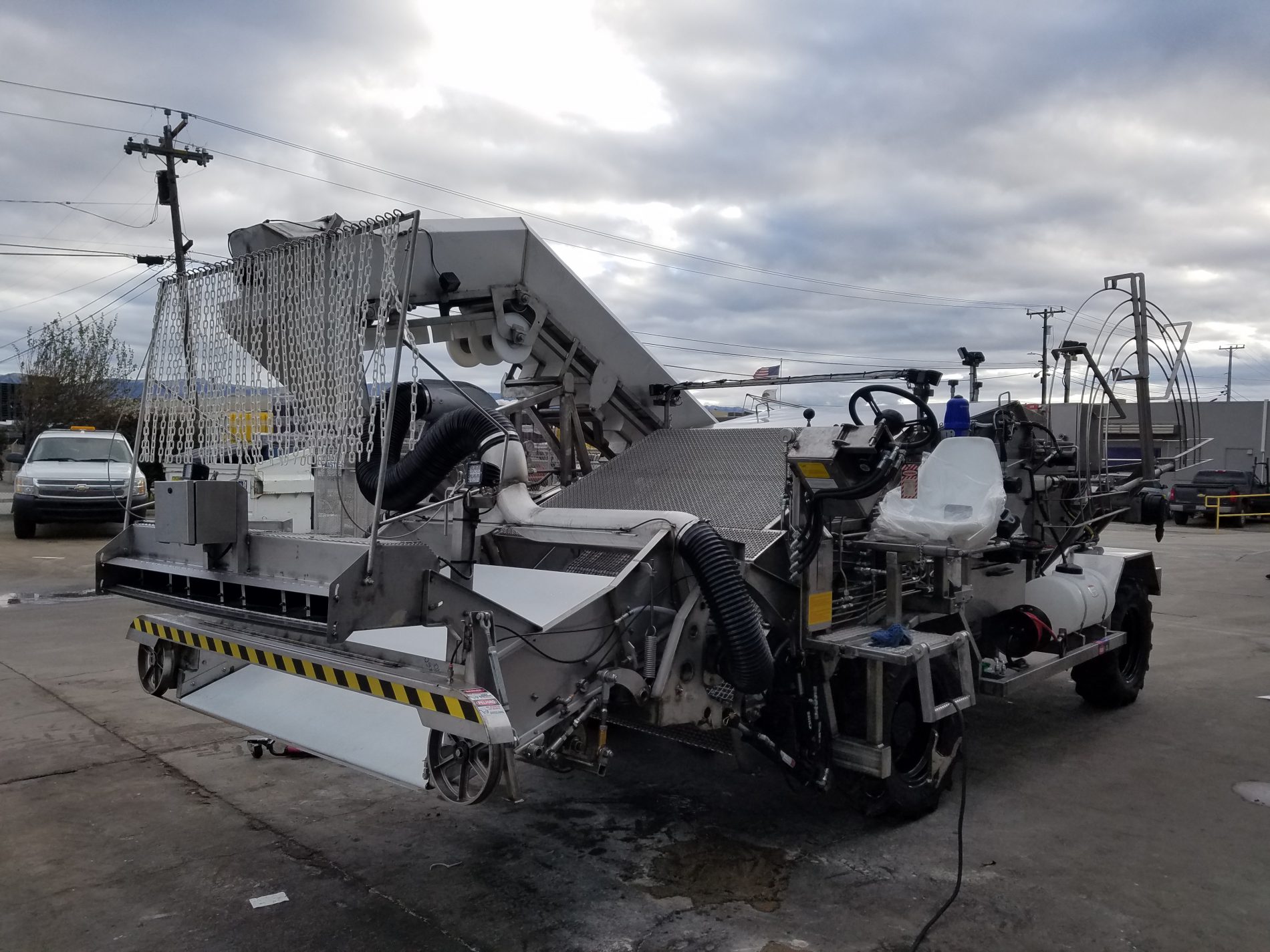

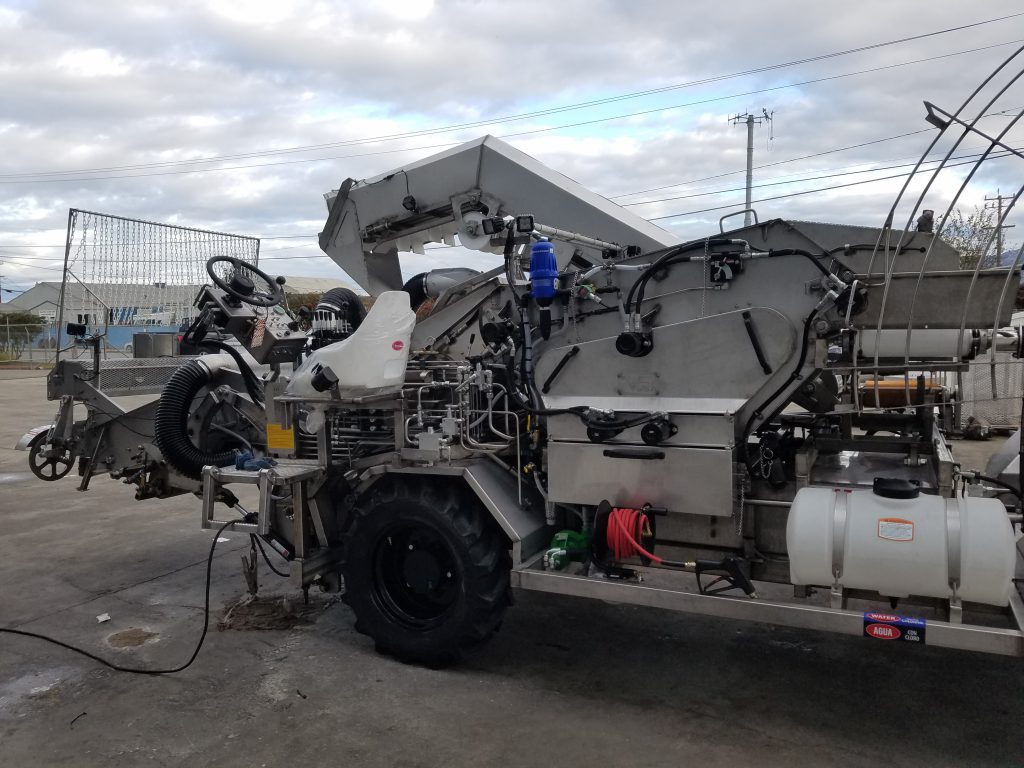

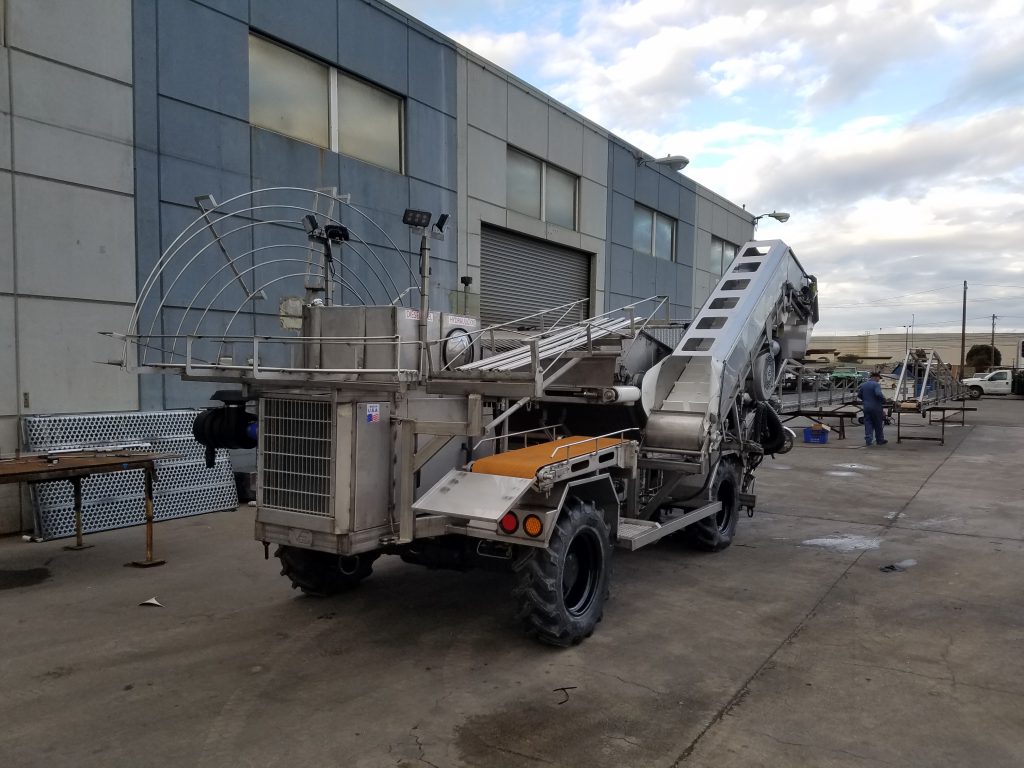

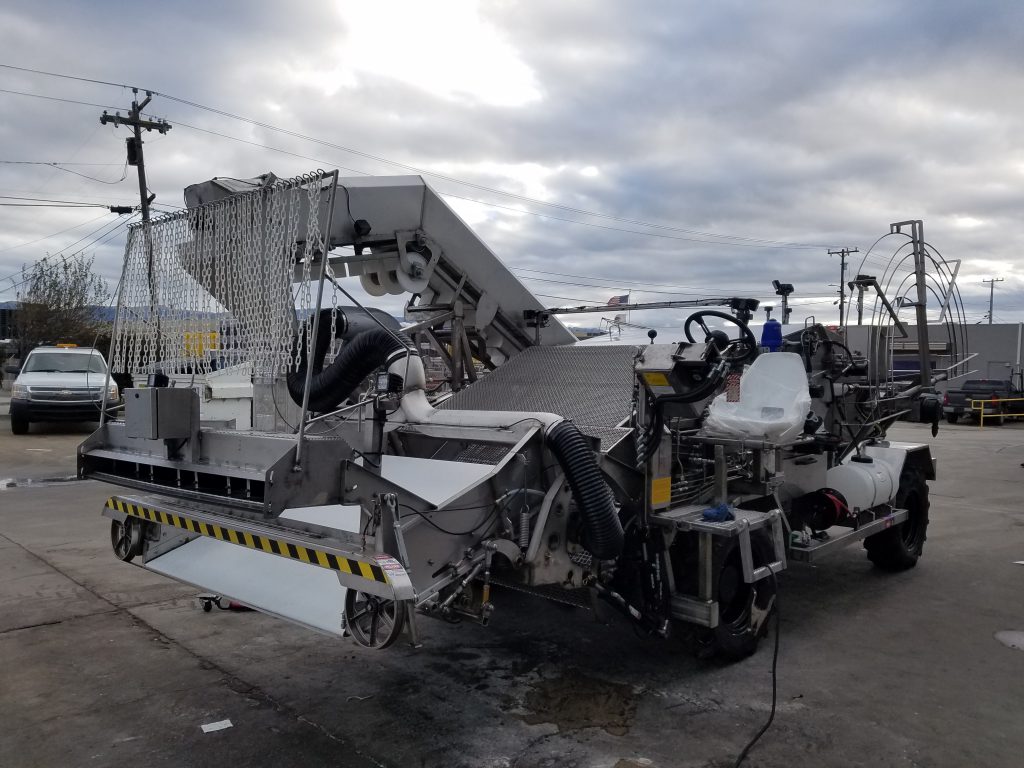

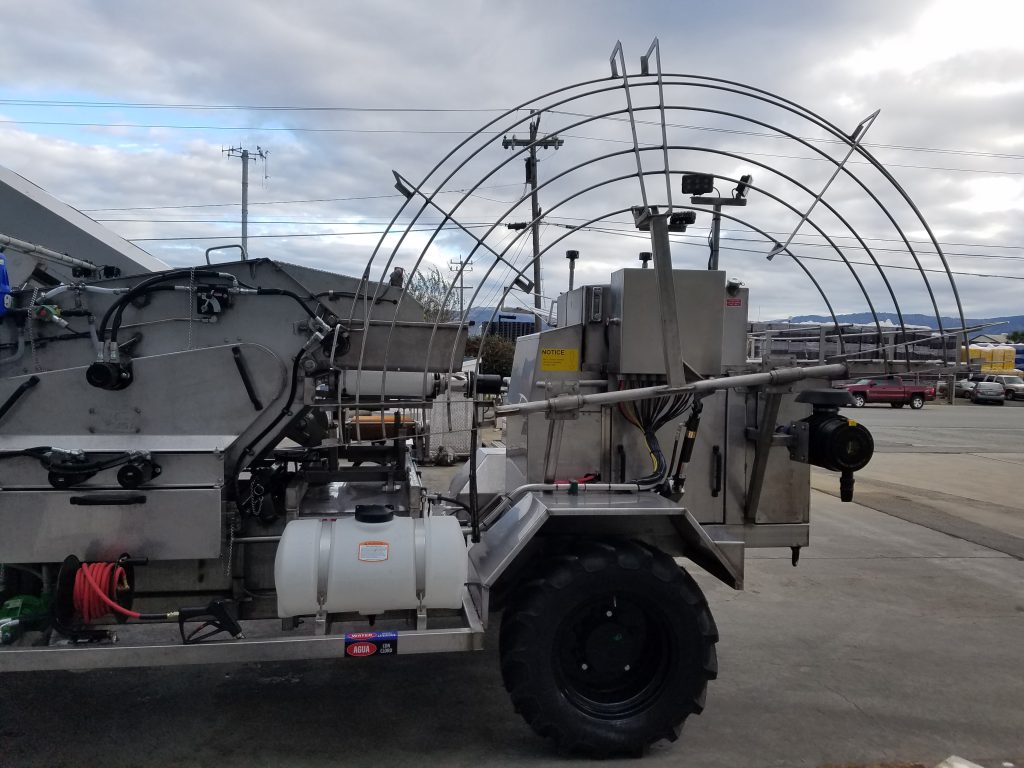

Leaf Cutter 5 LC5

Machine Features:

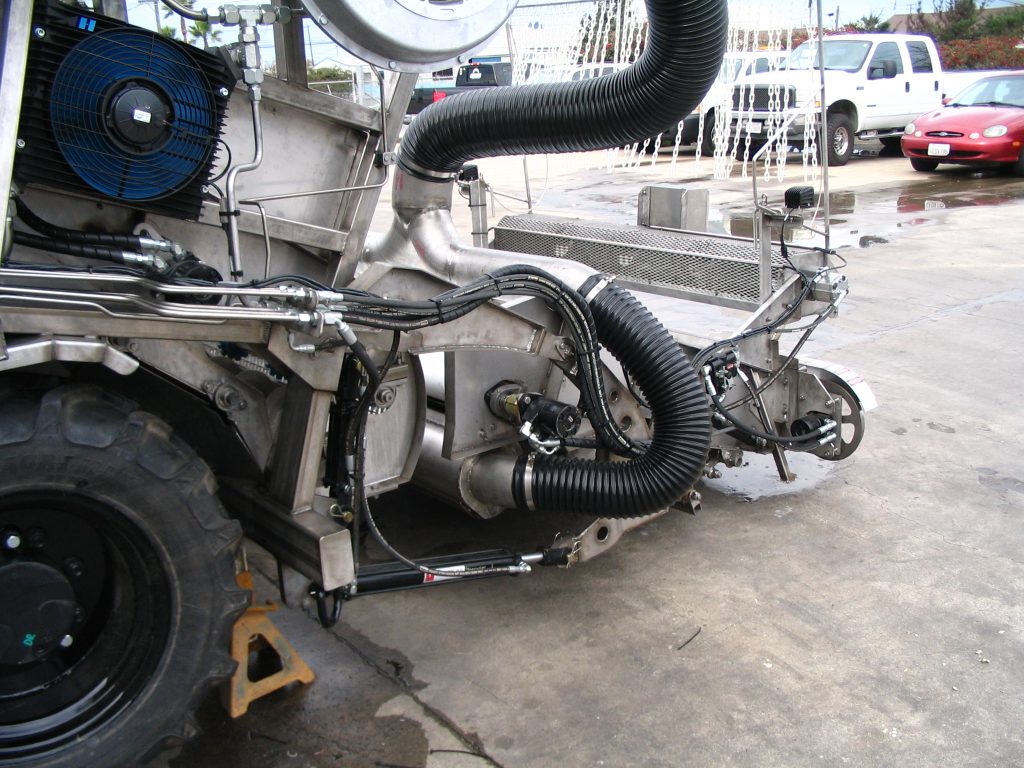

  • Totes and Bulk Machine with standard pickup header and air jump
  • Supply water on the pickup belt for reduced friction and cooling
  • Standard Mol pickup belt
  • Standard 3/4″ nose bar
  • Adjustable float pressure
  • Stainless steel construction except for power train
  • 102″ folded width for Totes Machine, Under 120″ for Totes/Bulk Machine
  • Estimated weight 13,000 lbs
  • Tote sweep made of bars or UHMW 180 degree
  • Axles with integral SAHR brakes and differential lock with and integrated 2 speed transfer case
  • Cummins QSF3.8 Tier 4 Final Engine, 130 HP
  • Hydraulic oil cooler with electric cooling fan
  • 1″ x 1″ stainless steel flat wire belt on both 1st and 2nd sort
    • Optional 1/2″ x 1″ stainless steel flat wire belt
  • Stainless Steel Cull Auger
  • Plastic triangular agitators with adjustable agitation speed
  • Spray bar on 2nd sort
  • 16″ wide smooth white cross conveyor belt with foot peddle activation
  • 16″ wide tan roughtop exit conveyor belt, constantly powered on
  • Hydraulic water pump with approximately 90 gal. water tank

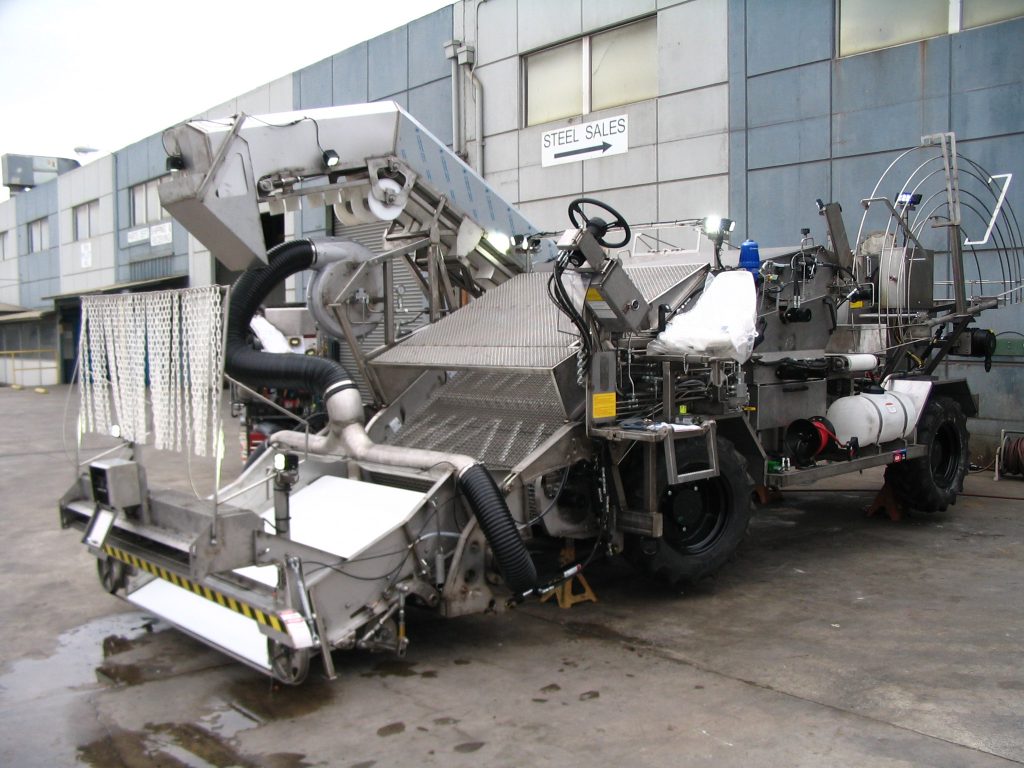

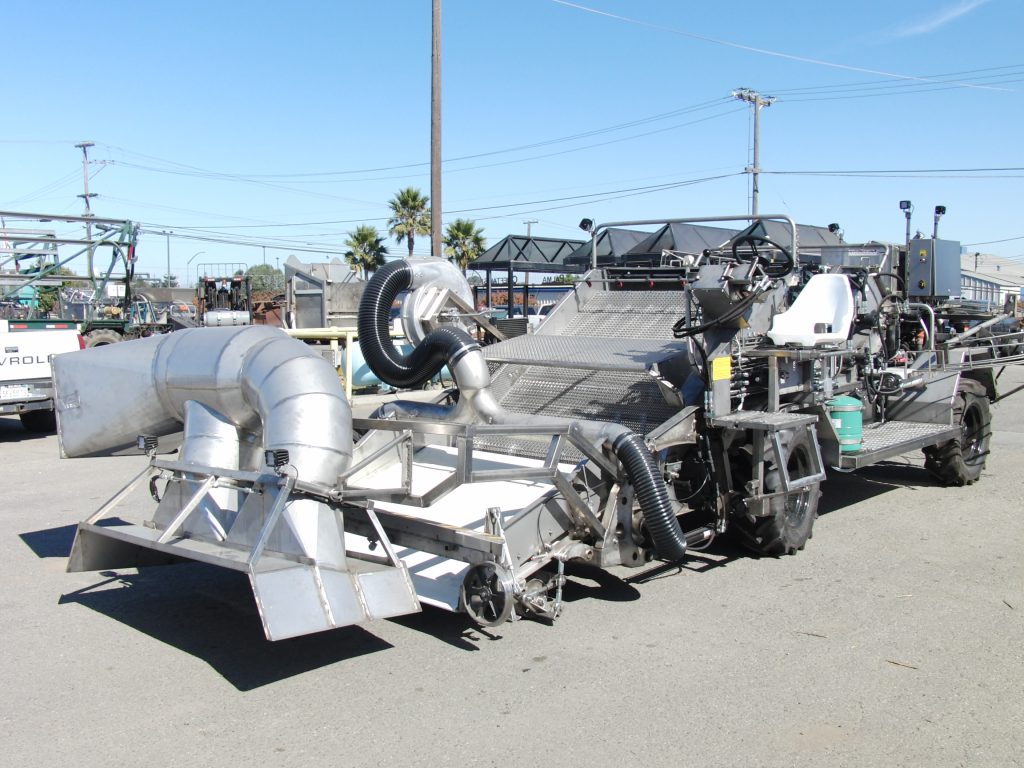

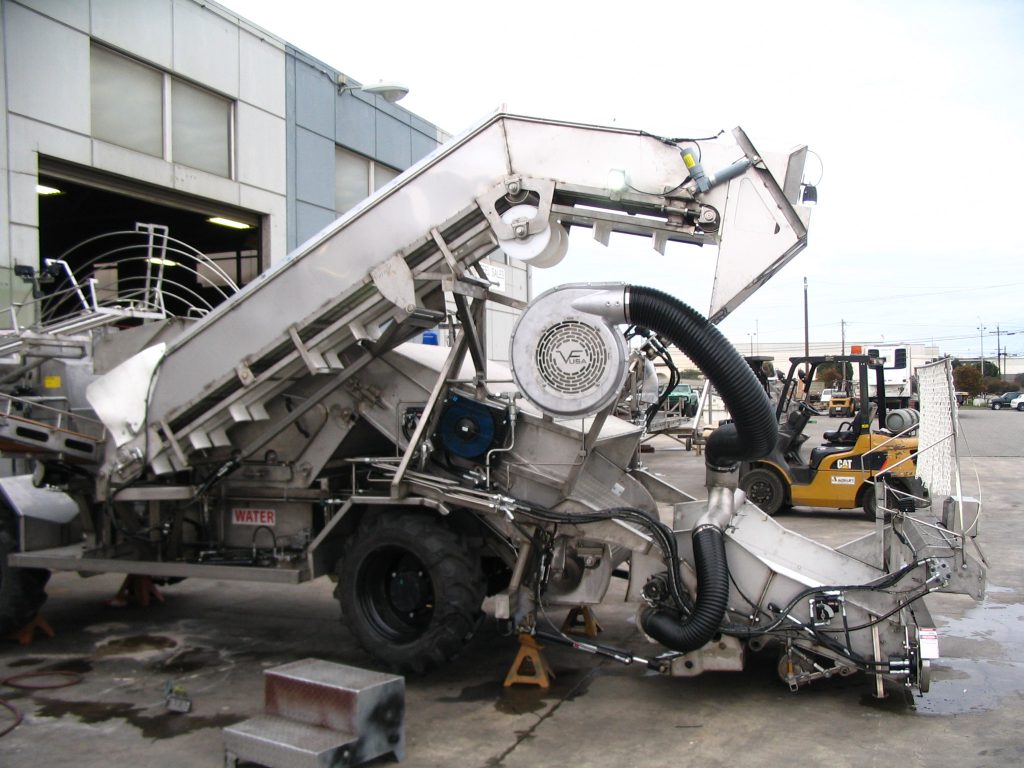

Leaf Cutter 3 LC3

  • Totes and bulk machine
  • Stainless steel construction except the undercarriage
  • 120″ folded width
  • Tote seep made of bars or UHMW base
  • 12″ x 264 Rubber tracks, centered on 80″
  • Cummins QSF 3.8 tier 4 Final engine, 130 hp
  • Hydraulic oil cooler with electric cooling fan
  • Standard VF header with;
    • Supply water on the pick up belt for reduced friction and cooling
    • Standard Mol pickup belt
    • Squirrel cage mouse or forward blower mounted to the front of the conveyor (Optional)
    • Standard air jump
    • Standard 3/4″ nose bar
    • Removable belt side supports
  • Features 2 sort conveyors
    • Both with 1″ x 1″ stainless steel flat wire belt
      • Optional 1/2″ x 1″ stainless steel flat wire belt
    • Both have stainless steel cull auger
  • The 2nd sort conveyor features
    • Spray bar for washing product
    • Grab bar near rear for personal to hold onto
    • Plastic triangular agitators with adjustable agitation speed
  • 16″ wide, white smooth RMV, Cross conveyor that moves up and down to transition between totes and bulk mode
  • Stainless see wash down rated foot switch for Turning cross conveyor on when in totes mode
  • 16″ Tote Exit conveyor, Rough top belting, constantly powered on
  • Tray on exit conveyor for holding the discharging tote
  • 18″ wide Tech-Roll driven Elevator conveyor with 4″ flights on 12″ centers
  • Electric flipper to push product from inside to outside bin
  • Approximately 80 gal water tank
