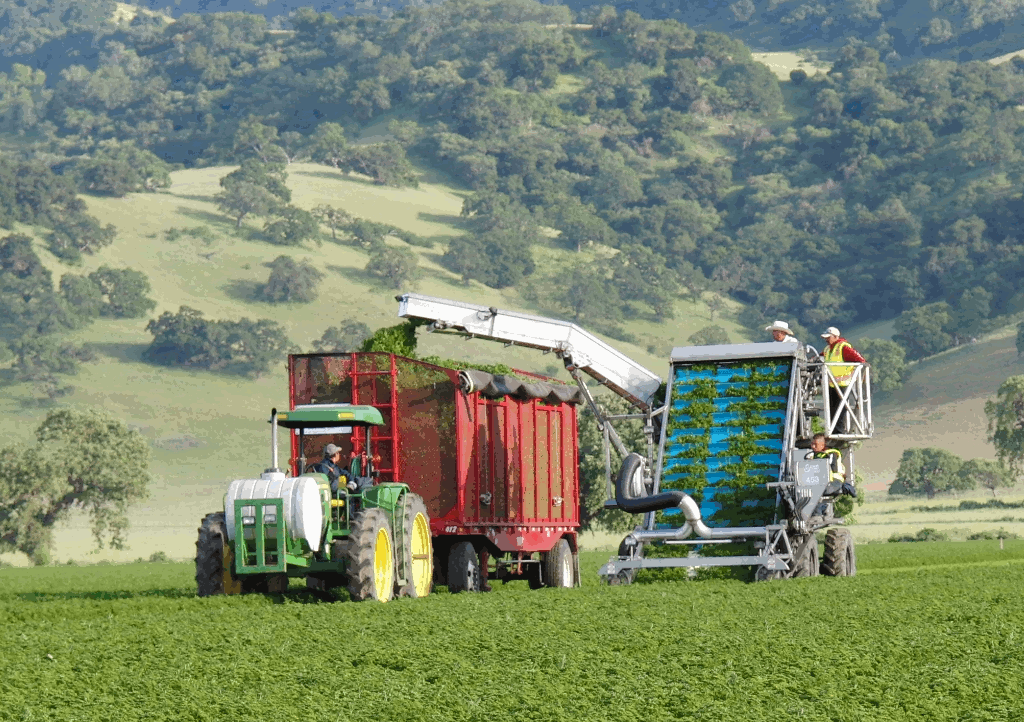

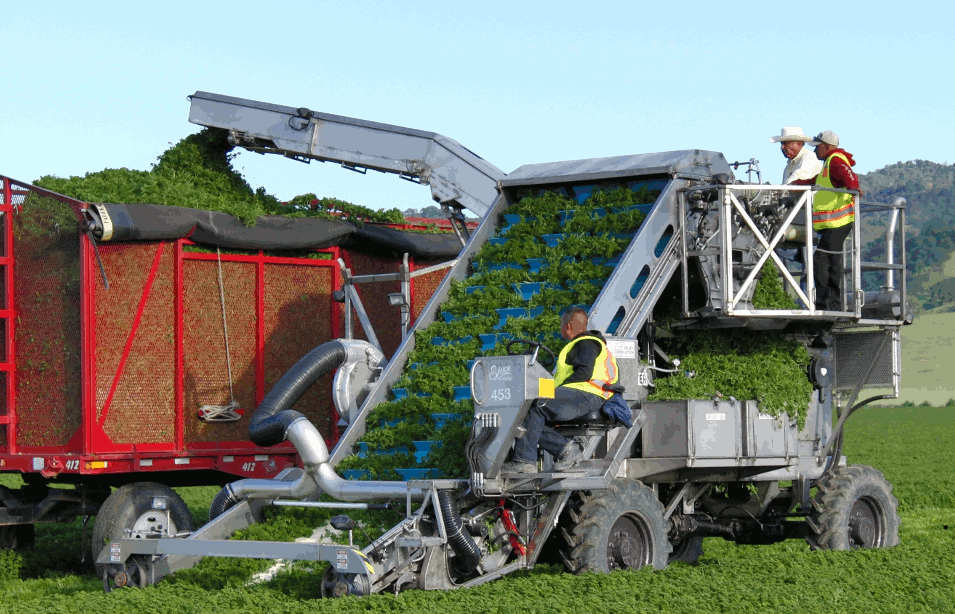

Side Load Spinach Harvester The side load harvester is designed for higher bulk operations. The product is collected in high bins or trailers that are pulled alongside the moving harvester. Productivity can exceed 10,000 lbs. of Spinach per hour. The harvester is built on a 4 wheel drive, 4 wheel steer vehicle with a hydrostatic transmission. The header includes a bandsaw cutter and pick-up belt which together "float" on a gauge roller. Product is delivered to the bins using a conveyor which pivots in order to fill both the inner and outer row of bins on the trailer without jumping beds. Features: smooth Cummins QSB4.5 130 hp Tier 3 engine 4 wheel drive, 4 wheel steer planetary axles with 100% differential locks smooth shifting four speed transfer case heavy duty Sauer Danfoss 90 Series drive pump and motor spring applied hydraulic release brake smooth operating hydraulic pickup belt float sort belt with agitator for extra cleaning and size sorting 24" wide discharge conveyor for maximum output
